1-1586041-6
HEADER, RIGHT ANGLE, VAL-U-LOK, 16 POS, DUAL ROW, UL94V-2, W/O PEGS | TE Connectivity 1-1586041-6
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1586041-6 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

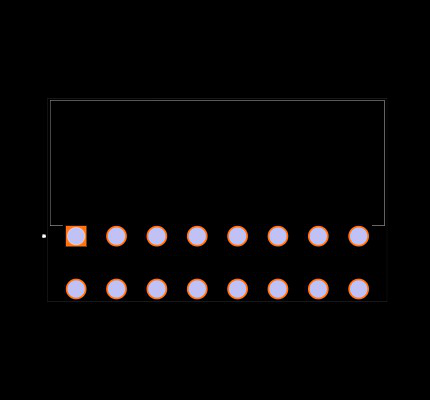

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1586041-6
| Part Name | 1-1586041-6 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Keyed |
| Centerline (Pitch) | 4.2 |
| Agency/Standard | CSA |
| Circuit Application | Power |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Mating Retention Type | Latch |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Width | .51 |
| Number of Power Positions | 16 |
| Operating Voltage (V) | 600 |
| Circuit Identification Feature | With |
| UL Rating | Recognized |
| Number of Positions | 16 |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 1.6 |
| Insulation Diameter (Max) | 2.39 |
| Termination Post & Tail Length | .14 |
| Contact Current Rating (Max) (A) | 9 |
| Connector & Contact Terminates To | Printed Circuit Board |
| TE Internal Number | 1-1586041-6 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Number of Rows | 2 |
| Agency/Standard Number | E28476 |
| Housing Color | Natural |
| Header Type | Shrouded |
| Product Type | Header |
| Connector Mounting Type | Board Mount |
| Mating Retention | With |
| Operating Temperature Range | -40 – 221 |
| Packaging Method | Tray |
| Housing Type | Plug |
| Packaging Quantity | 110 |
| Contact Layout | Inline |
| Contact Termination Area Plating Material | Tin |
| Length | 34.8 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| VDE Tested | No |
| Housing Material | Nylon |
| Sealable | No |
| Contact Retention | Without |
| Assembly Integration Feature | Without |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-2 |
| Height | .386 |
| Row-to-Row Spacing | 4.2 |
| CSA File Number | 208567 |
| Contact Mating Area Plating Thickness | 2.03 |
| Contact Type | Pin |
| Accepts Wire Insulation Diameter Range | .047 – .122 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
No issues have been reported for the 1-1586041-6
