1-5532431-1
Conn HDI RCP 210 POS 2.54mm Solder RA Thru-Hole Tube
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-5532431-1 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

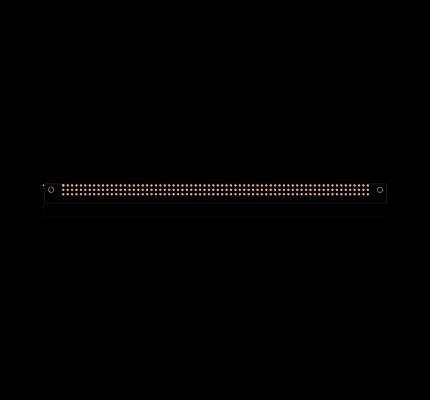

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-5532431-1
| Part Name | 1-5532431-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .1 |
| Circuit Application | Signal |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Insulation Resistance | 3 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 2.36 |
| Termination Post & Tail Length | .18 |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| TE Internal Number | 1-5532431-1 |
| PCB Mount Orientation | Right Angle |
| Connector System | Board-to-Board |
| Connector Height | 8.48 |
| Number of Rows | 3 |
| PCB Contact Termination Area Plating Material Thickness | .1 |
| Board-to-Board Configuration | Right Angle |
| Connector Mounting Type | Board Mount |
| Housing Color | Black |
| Operating Temperature Range | -85 – 257 |
| Packaging Method | Tube |
| Packaging Quantity | 3 |
| Contact Configuration | Four Beam |
| Contact Layout | Matrix |
| Number of Positions | 210 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Gold |
| Stackable | No |
| Housing Material | Thermoplastic |
| Contact Base Material | Copper Alloy |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | .76 |
| Contact Current Rating (Max) (A) | 3 |
| High Temperature Compatible | Yes |
| Contact Type | Socket |
| PCB Contact Termination Area Plating Material | Tin |
| Sealable | No |
| Make First / Break Last | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
