103321-8
Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Automotive Carton
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 103321-8 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

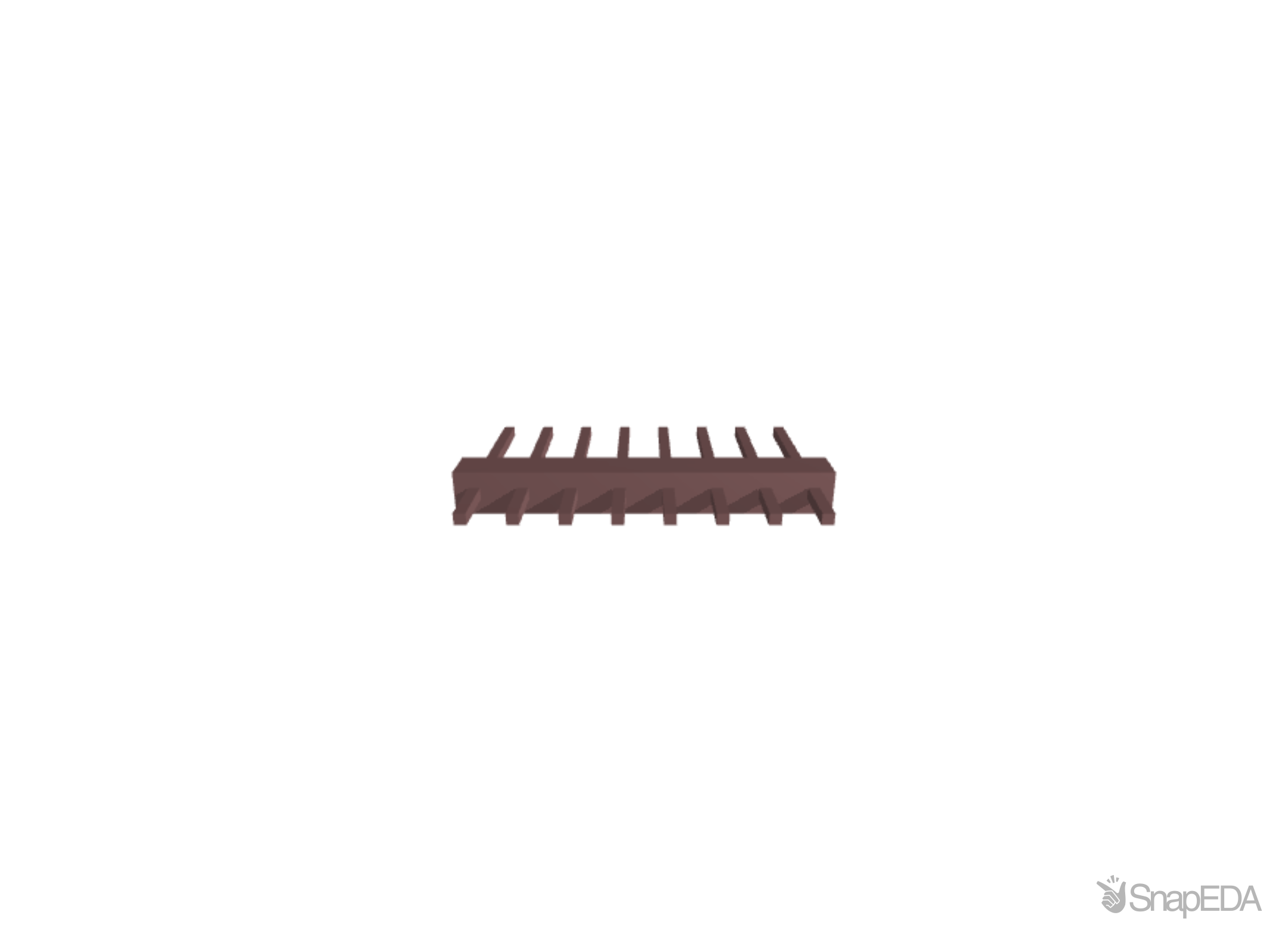

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 103321-8
| Part Name | 103321-8 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.54 |
| Dielectric Withstanding Voltage (V) | 750 V |
| Housing Material | Thermoplastic |
| Row-to-Row Spacing | .1 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Termination Post & Tail Length | .125 |
| PCB Connector Assembly Type | PCB Mount Header |
| Mating Post Length | .318 |
| TE Internal Number | 103321-8 |
| PCB Mount Orientation | Vertical |
| Number of Rows | 1 |
| PCB Contact Termination Area Plating Material Thickness | 100 – 200 |
| Header Type | Breakaway |
| Contact Underplating Material | Nickel |
| Strain Relief | Without |
| Contact Shape | Square |
| Housing Color | Black |
| Operating Temperature Range | -65 – 105 |
| Packaging Method | Carton |
| Packaging Quantity | 200 |
| 端子の下地めっきの材料 | Nickel |
| Number of Positions | 8 |
| Contact Mating Area Plating Material | Tin-Lead |
| Approved Standards | CSA LR7189 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Base Material | Phosphor Bronze |
| High Temperature Housing | No |
| Post Size | .64 |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 100 – 200 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 3 |
| Connector Contact Load Condition | Fully Loaded |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 103321-8 by TE Connectivity AMP Connectors from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Arrow Electronics |
6,600
|
1 x $0.33
|
Visit Site | |
| Onlinecomponents |
230
|
|
Visit Site | |
| Verical |
1,150
|
|
Visit Site |
No issues have been reported for the 103321-8
