1546073-5
5 Position Wire to Board Terminal Block Vertical with Board 0.200" (5.08mm) Through Hole
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1546073-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

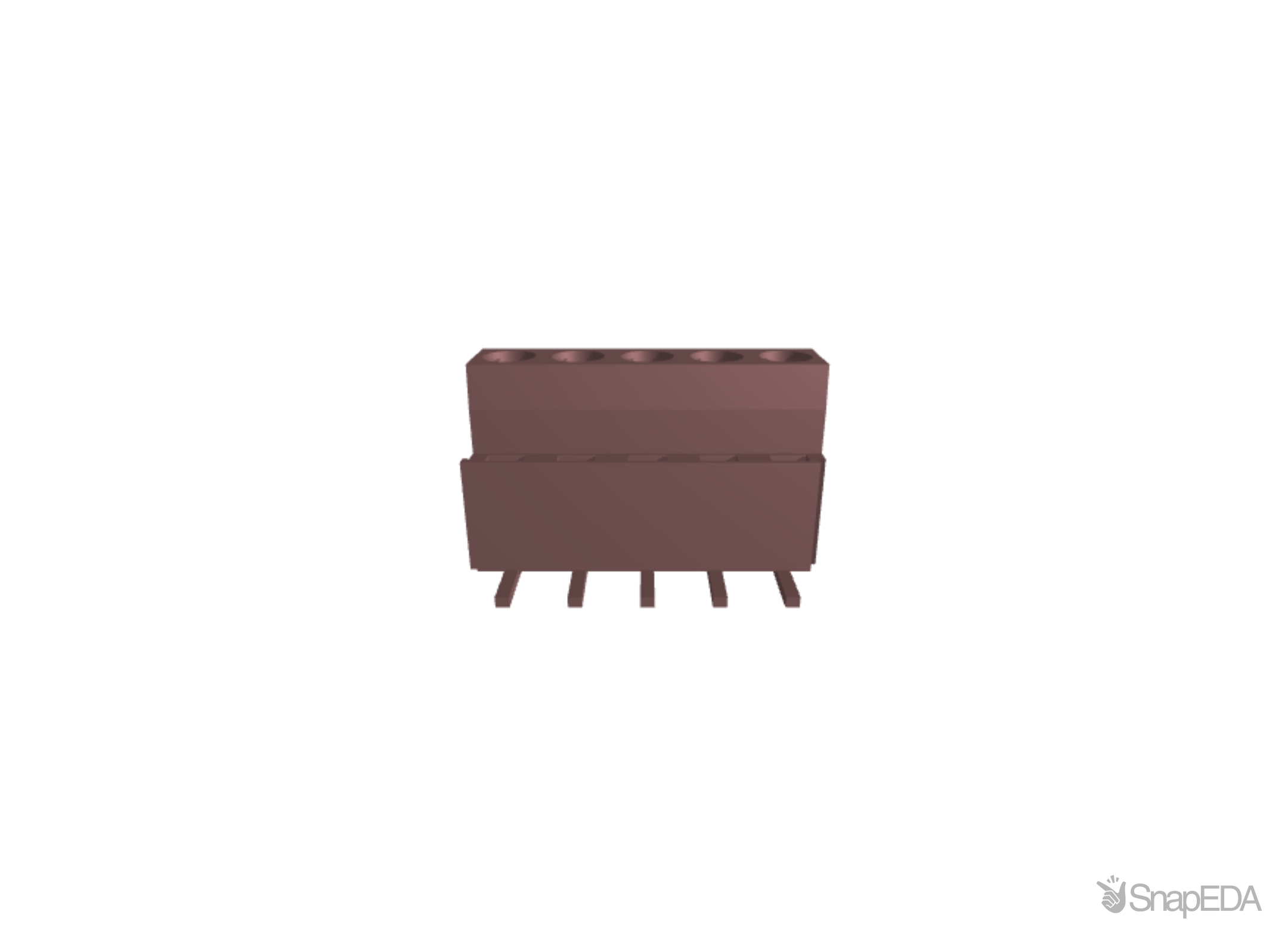

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1546073-5
| Part Name | 1546073-5 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 5.08 |
| Pin Length | 3.8 |
| Circuit Application | Power & Signal |
| Housing Material | PA 66 |
| Screw Plating Material | Nickel |
| Screw Flange | Without |
| Screw Size | M3 |
| Contact Mount | Through Hole |
| Connector Style | Header |
| Number of Positions | 5 |
| Stacking Configuration | Side Stackable |
| Current Rating (Max) (A) | 17.5 |
| Screw Material | Brass |
| TE Internal Number | 1546073-5 |
| PCB Tail Length | 3.8 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Wire-to-Board |
| Screwless Terminal Block | No |
| Number of Rows | 1 |
| Housing Color | Black |
| Header Type | Header Only |
| Contact Base Material | Brass |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 to 110 |
| Packaging Quantity | 150 |
| Stacked Levels | Without |
| Contact Mating Area Plating Material | Tin |
| Mounting Angle | Right Angle |
| Threaded Flange | Without |
| Color | Black |
| Interlock | With |
| Wire Entry Angle | Top |
| Contact Current Rating (Max) (A) | 17.5 |
| Block Type | Stacking w/interlock |
| Voltage (V) | 300 |
| Wire Size | .05 3 |
| Closed End | Without |
| Wire Protection | With |
