16TDC220MD3
Series/Type: TDC, Rated Voltage (V): 16, Capacitance (µF): 220, Capacitance (µF): +/-20, Category Temperature Range (°C): -55 to +125, Endurance@Temp.: 1000h@125°C, Rated Ripple Current (mArms): 1800, Rated Ripple Current (temp.) (°C): 105, Rated Ripple Current (freq.) (kHz): 100, ESR (mΩ): 50, ESR Frequency (kHz): 100, Leakage Current [Max.] (µA): 240, Dissipation Factor [Max.]: 0.1, Body Length (mm): 7.3, Body Width (mm): 4.3, Body Height (mm): 2.8, Size Code: D3L
Availability: In Stock
Package Type: 7343-2

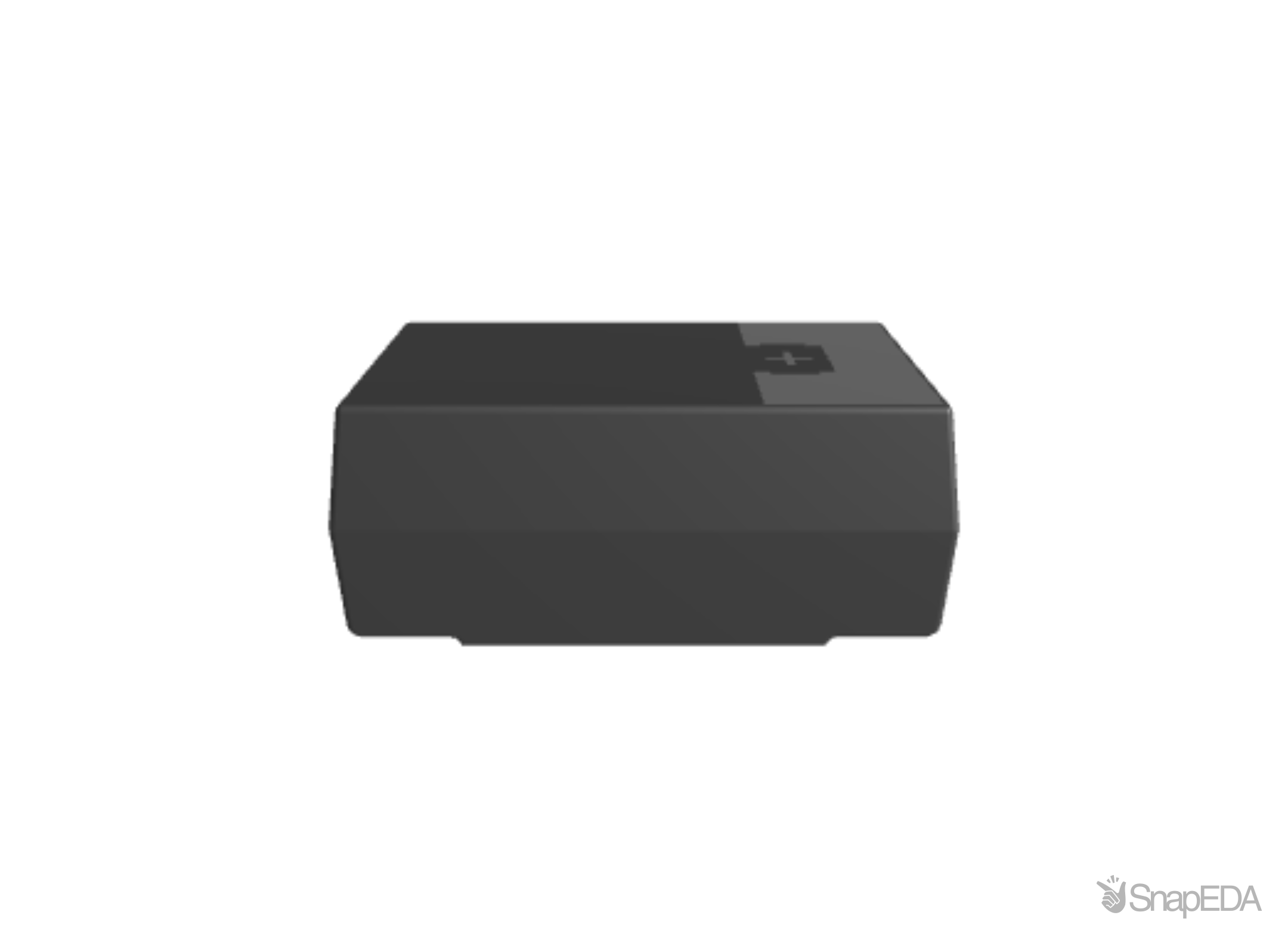

CAD Models: Symbol, Footprint, 3D Model
