1757543
SnapVerified

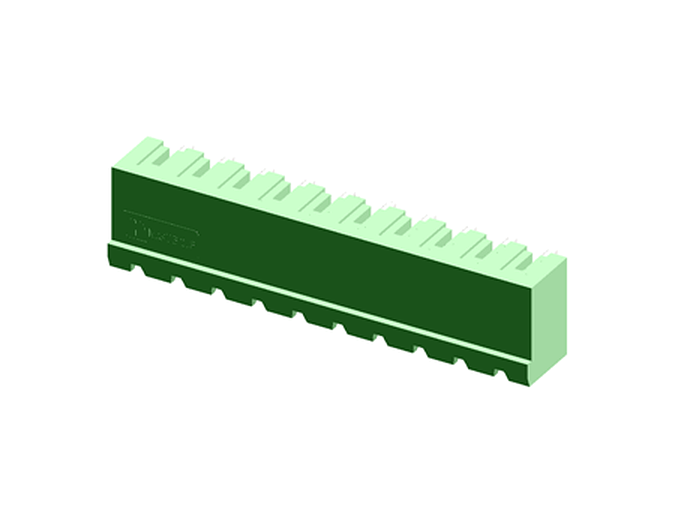

Pluggable Header 5mm 12AWG 320V 12A 10 Position COMBICON MSTBA Series | Phoenix Contact 1757543
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1757543 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1757543
| Part Name | 1757543 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Assembly Type | Wave soldering |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Assembly | plugged-in |
| Product Article Number Of Manufacturer | 1757543 |
| Material Of Insulation | PA |
| Product Description | PCB header |
| Pole Number | 10 |
| Height | 11.8 |
| Width | 52 |
| Depth | 12 |
| GTIN | 4017918030070 |
| Type Of Interlock | without |
| Rated Current (A) | 12 |
| Manufacturer Product Designation | PCB header |
| Application Standards | IECÂ 61984 |
| Color Of Housing | green |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 1757543
