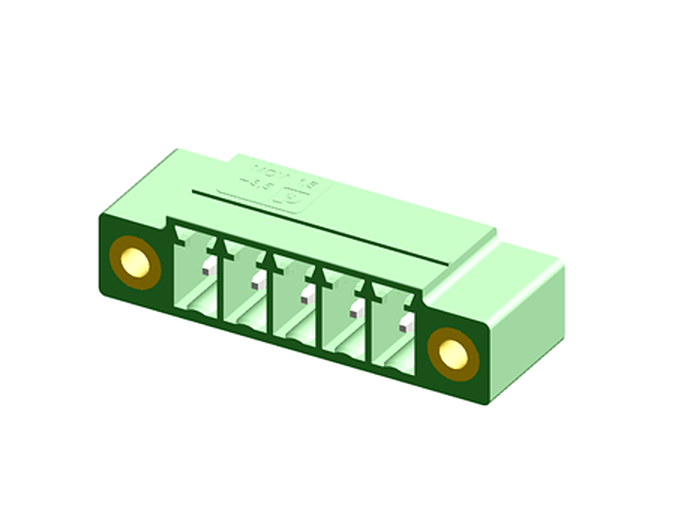

Pluggable Header 3.5mm 16AWG 160V 8A 5 Position Combicon Control Series | Phoenix Contact 1843253
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1843253 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1843253
| Part Name | 1843253 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Assembly Type | Wave soldering |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Assembly | Threaded joint |
| Product Article Number Of Manufacturer | 1843253 |
| Material Of Insulation | PBT |
| Product Description | PCB header |
| Pole Number | 5 |
| Height | 12.6 |
| Width | 27.8 |
| Depth | 7.25 |
| GTIN | 4017918112448 |
| Type Of Interlock | Threaded joint |
| Rated Current (A) | 8 |
| Manufacturer Product Designation | PCB header |
| Application Standards | IECÂ 61984 |
| Color Of Housing | green |
