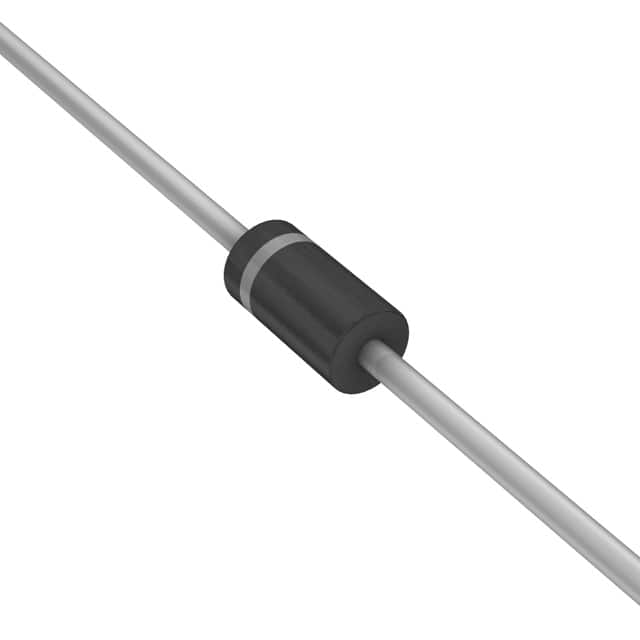

1N4937RLG
Rectifier Diode Switching 600V 1A 300ns 2-Pin DO-41 T/R
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1N4937RLG by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

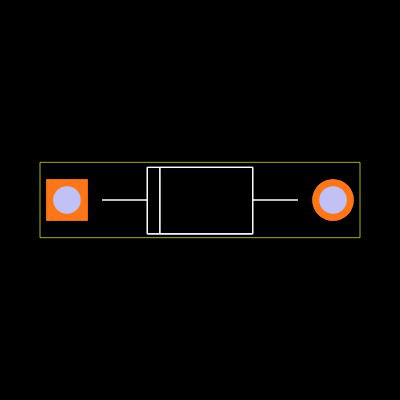

Footprint
No web preview
This Footprint is Available for

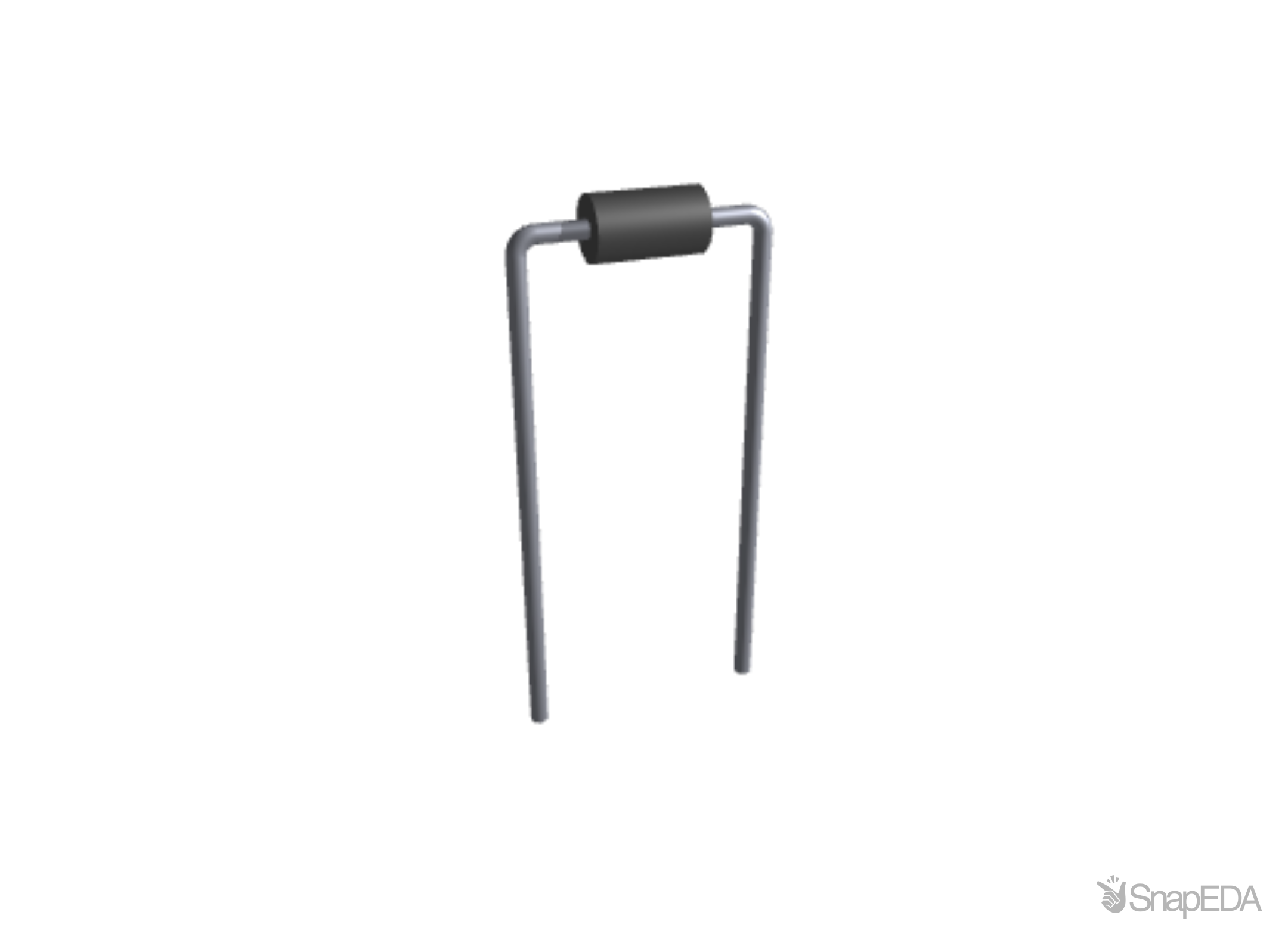

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1N4937RLG
| Part Name | 1N4937RLG |
| Manufacturer | onsemi |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Diameter | 2.7 (mm) |
| Mounting Type | Through Hole |
| Peak Non-Repetitive Forward Surge Current (A) | 30 (A) |
| Number Of Elements Per Chip | 1 |
| Peak Reverse Recovery Time | 300 (ns) |
| Maximum Forward Voltage Drop (V) | 1.2 (V) |
| Rectifier Type | General Purpose |
| Diode Technology | Silicon Junction |
| Package Type | DO-41 |
| Maximum Continuous Forward Current (A) | 1 (A) |
| Diode Type | Rectifier |
| Diode Configuration | Single |
| Pin Count | 2 |
| Peak Reverse Repetitive Voltage (V) | 600 (V) |
No issues have been reported for the 1N4937RLG
