20TQC33MYFB
Series/Type: TQC, Rated Voltage (V): 20, Capacitance (F): 33, Tolerance on Capacitance (%): -20 to +20, Category Temperature Range (C): -55 to +105, Endurance@Temp.: 2000h@105C, Rated Ripple Current (mArms): 900, Rated Ripple Current (temp.) (C): 105, Rated Ripple Current (freq.) (kHz): 100, ESR (m?): 100, ESR Frequency (kHz): 100, Leakage Current [Max.] (A): 198, Dissipation Factor [Max.]: 0.1, Body Length (mm): 3.5, Body Width (mm): 2.8, Body Height (mm): 1.9, Size Code: B2
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 20TQC33MYFB by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

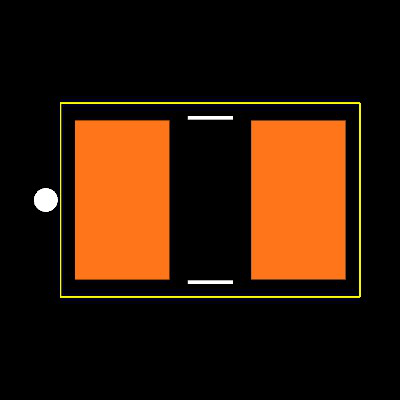

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 20TQC33MYFB
| Part Name | 20TQC33MYFB |
| Manufacturer | Panasonic |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
