352218KJT
SnapVerified
18 kOhms ±5% 3W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200 Thick Film
Availability: In Stock
Package Type: 6332
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 352218KJT by TE and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

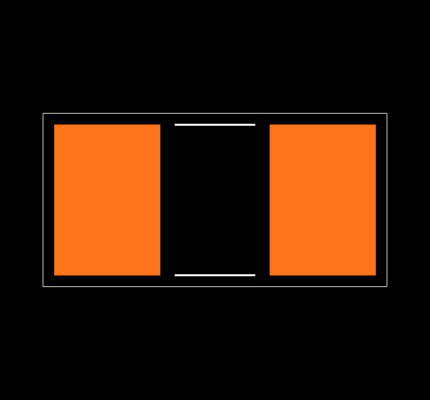

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 352218KJT
| Part Name | 352218KJT |
| Manufacturer | TE Connectivity Passive Product |
| Mount Style | Surface Mount |
| Dimensions | 6.35 x 3.2 x .55 |
| Size Code | 2512 |
| Resistance Range | 1kΩ – 1MΩ |
| Resistor Type | Power Resistor |
| Packaging Method | Taped & Reeled |
| Resistance | 18K |
| Temperature Coefficient | ±100 |
| Element Type | Thick Film |
| TE Internal Number | 5-2176230-3 |
| Number of Resistors | 1 |
| Termination Type | Solder |
| Number of Terminations | 2 |
| Power Rating | 3 |
| Product Type | Fixed Resistor |
| Tolerance | 5% |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 352218KJT by TE from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
11,877
|
|
Visit Site | |
|
★ Featured
|
2,130
|
|
Visit Site | |
|
★ Featured
|
4,223
|
|
Visit Site | |
| Onlinecomponents |
4,000
|
|
Visit Site | |
| Verical |
5,063
|
185 x $0.73
|
Visit Site |
No issues have been reported for the 352218KJT
