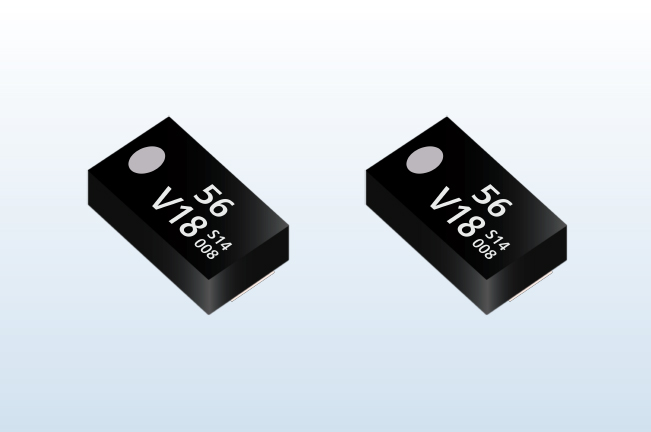

35TQT56M
Series/Type: TQT, Rated Voltage (V): 35, Capacitance (F): 56, Tolerance on Capacitance (%): +/-20, Category Temperature Range (C): -55 to +105, Endurance (h): 2000, Endurance@Temp.: 2000h@105C, Rated Ripple Current (mArms): 1200, Rated Ripple Current (temp.) (C): 105, Rated Ripple Current (freq.) (kHz): 100, ESR (m?): 100, ESR Frequency (kHz): 100, Leakage Current [Max.] (A): 196, Dissipation Factor [Max.]: 0.1, Body Length (mm): 7.3, Body Width (mm): 4.3, Body Height (mm): 1.4, Size Code: D15S
