FPH-5422G=FLXPAC HDR P ST LF
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 4-1658549-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

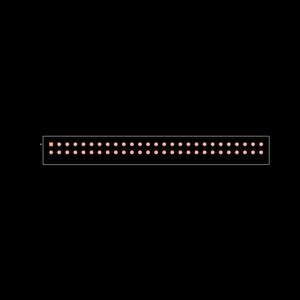

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the 4-1658549-7
Part Name | 4-1658549-7 |
Manufacturer | TE Connectivity |
Mating Alignment Type | Polarization |
Centerline (Pitch) | .1 |
Circuit Application | Signal |
Cable Entry | Vertical |
Mating Retention Type | Detent Windows |
Housing Material | Nylon |
Row-to-Row Spacing | .1 |
Contact Termination Area Plating Thickness | 100 |
Connector Style | Plug |
Connector & Contact Terminates To | Printed Circuit Board |
PCB Mount Retention | Without |
PCB Thickness (Recommended) | 1.57 |
TE Internal Number | 4-1658549-7 |
PCB Mount Orientation | Vertical |
Connector System | Wire-to-Board |
Number of Rows | 2 |
Housing Color | Blue |
Header Type | Shrouded |
Contact Base Material | Phosphor Bronze |
Connector Mounting Type | Board Mount |
Termination Method to Printed Circuit Board | Through Hole - Solder |
Insertion Force Type | Zero Insertion Force (ZIF) |
Operating Temperature Range | -55 – 105 |
Tail Length | 2.54 |
Connector Type | Header |
Contact Layout | Inline |
Contact Termination Area Plating Material | Tin |
Number of Positions | 54 |
Mating Alignment | With |
Contact Mating Area Plating Material | Gold |
Mating Retention | With |
Sealable | No |
Color | Blue |
PCB Mount Alignment | Without |
UL Flammability Rating | UL 94V-0 |
Contact Mating Area Plating Material Thickness | 30 |
Panel Mount Feature | Without |
Contact Current Rating (Max) (A) | 2 |
Contact Type | Pin |
