5-520314-6
SnapVerified
6 Position FFC, FPC Connector Contacts, Top 0.100" (2.54mm) Through Hole, Right Angle
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5-520314-6 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

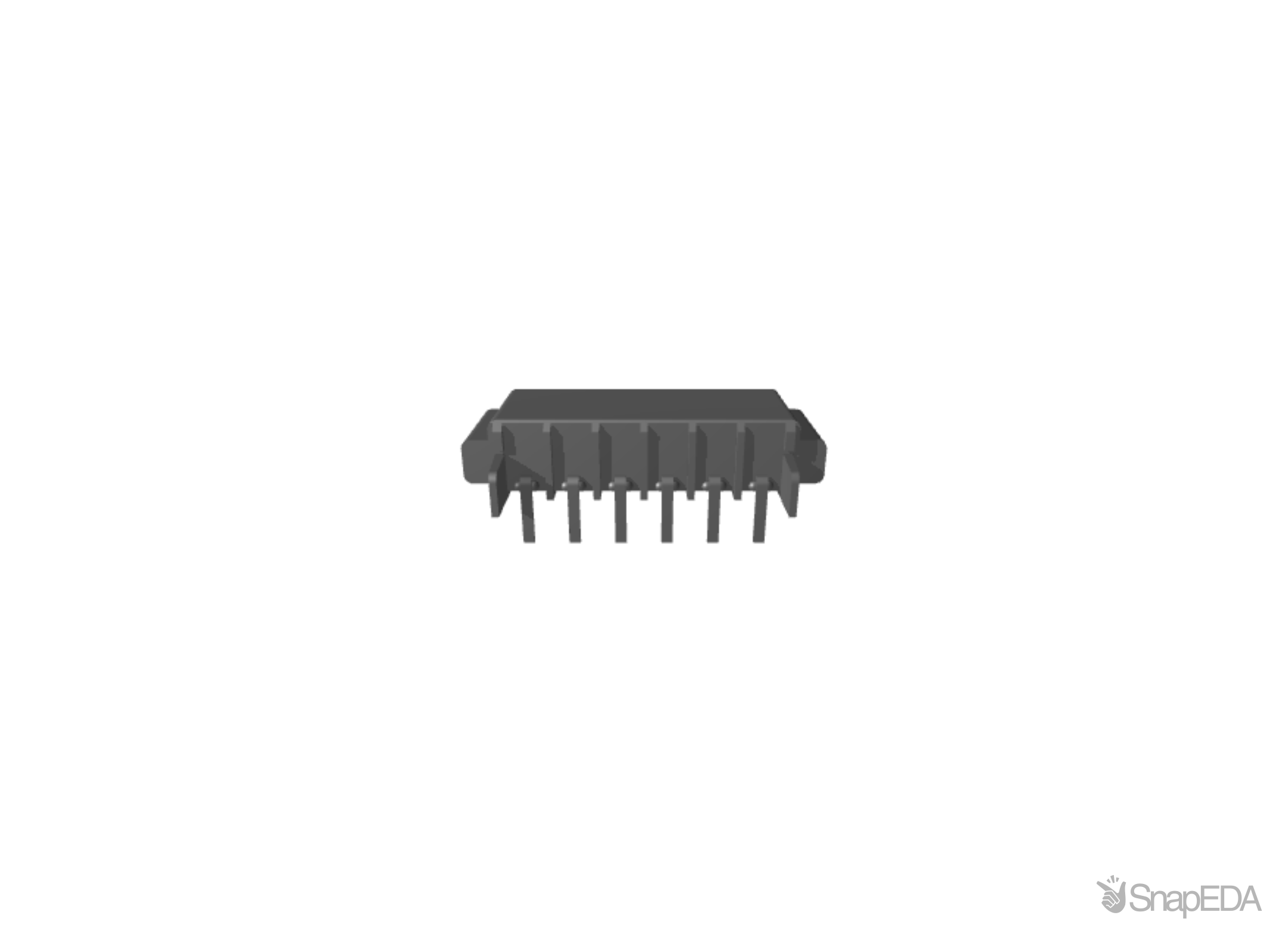

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5-520314-6
| Part Name | 5-520314-6 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .1 |
| Circuit Application | Signal |
| Cable Entry | Right Angle |
| Housing Material | Thermoplastic |
| Insulation Resistance | 5000 |
| Connector Style | Receptacle |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Z Bend |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | 1.57 |
| TE Internal Number | 5-520314-6 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Housing Color | Black |
| Contact Mating Area Plating Material Finish | Matte |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Dielectric Withstanding Voltage (Max) (V) | 1400 |
| Mating Retention | Without |
| Insertion Force Type | Low Insertion Force (LIF) |
| Operating Temperature Range | -67 – 221 |
| Packaging Method | Tray |
| Tail Length | 2.54 |
| Packaging Quantity | 240 |
| Connector Type | Connector Assembly |
| Number of Positions | 6 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin-Lead |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Base Material | Phosphor Bronze |
| Termination Post Length | 2.54 |
| Color | Black |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 1 |
| Type of Connector | Trio-Mate |
| Voltage (V) | 250 VAC |
| Contact Type | Socket |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 5-520314-6
If you experienced any issues with the symbol or footprint, please report it.
