5.0SMDJ36A
5000W, 42.1V, 5%, Unidirectional, TVS
Availability: Out of Stock
Package Type: SMC-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5.0SMDJ36A by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

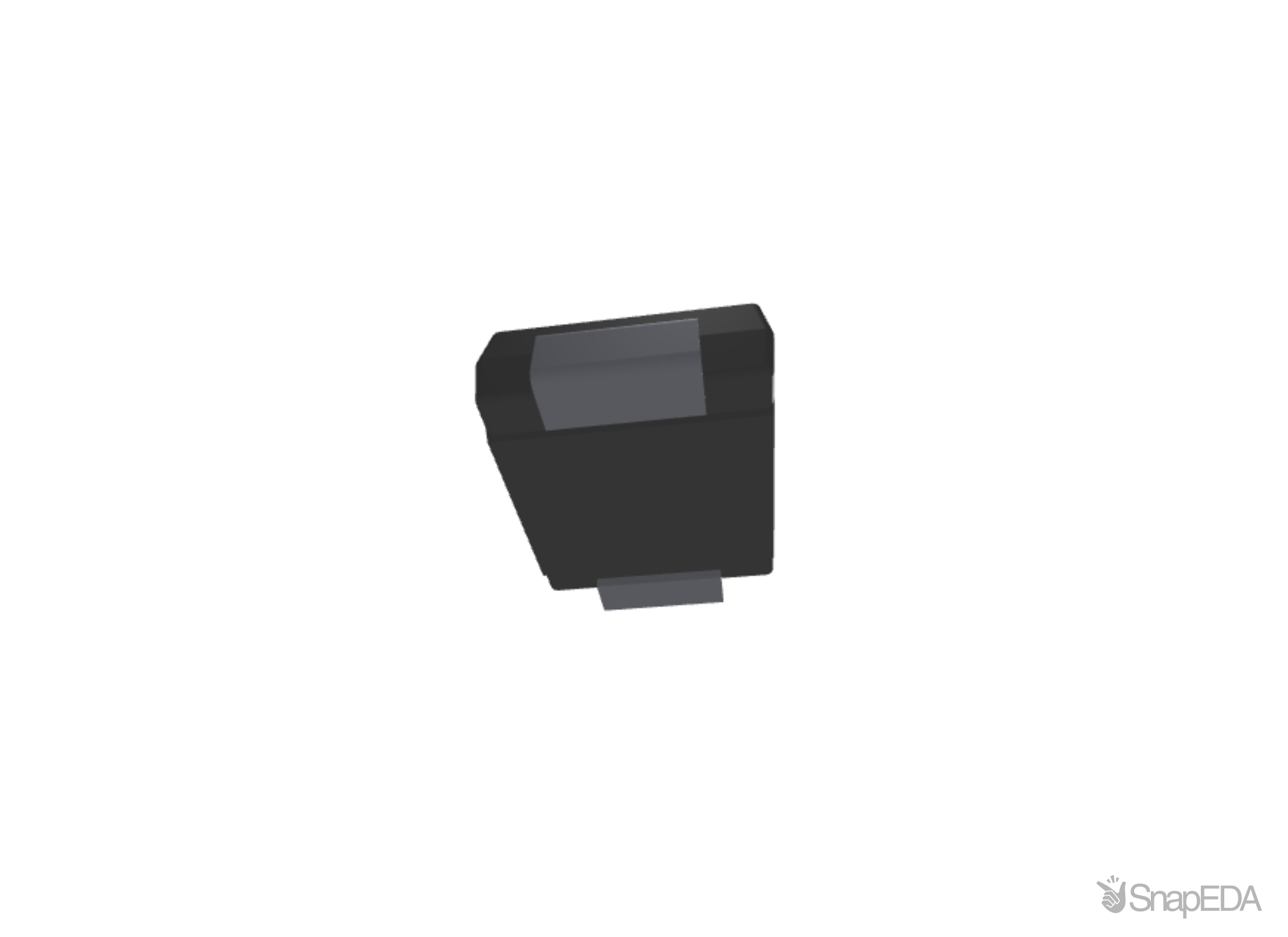

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5.0SMDJ36A
| Part Name | 5.0SMDJ36A |
| Manufacturer | Taiwan Semiconductor |
| Minimum Breakdown Voltage (V) | 40.0 |
| Maximum DC Reverse Current (A) | 2e-06 |
| Case Package | DO-214AB (SMC) |
| Maximum peak impulse current (A) | 86.1 |
| Breakdown Voltage Tolerance (V) | 5.0 |
| Maximum clamping voltage (V) | 58.1 |
| Maximum Breakdown Voltage (V) | 44.2 |
| Breakdown Voltage (V) | 42.1 |
| Maximum Peak Pulse Power | 5000.0 |
| AEC-Q compliant | True |
| Configuration | Unidirectional |
| Maximum Operating Junction Temperature | 175.0 |
| Stand-off Voltage (V) | 36.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
