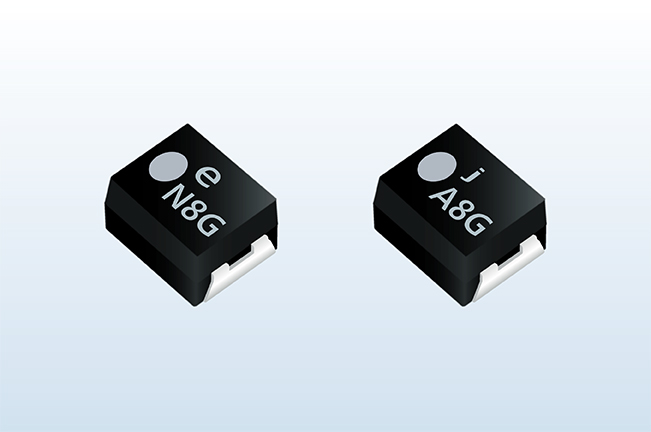

6TLE100MZB
Series/Type: TLE, Rated Voltage (V): 6.3, Capacitance (µF): 100, Tolerance on Capacitance (%): +/-20, Category Temperature Range (°C): -55 to +125, Endurance@Temp: 2000h@125°C, Rated Ripple Current (mArms): 1400, Rated Ripple Current (temp.) (°C): 45, Rated Ripple Current (freq.) (kHz): 100, ESR (mΩ): 35, ESR Frequency (kHz): 100, Leakage Current [Max.] (µA): 126, Dissipation Factor [Max.]: 0.08, Body Length (mm): 3.5, Body Width (mm): 2.8, Body Height (mm): 1.9, Size Code: B2
Availability: Out of Stock
Package Type: NON STANDARD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 6TLE100MZB by Panasonic Electronic Components and for millions of electronic components.
