742792641
300 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0603 (1608 Metric) 2A 150mOhm
Availability: Out of Stock
Package Type: 0603
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 742792641 by Wurth Electronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

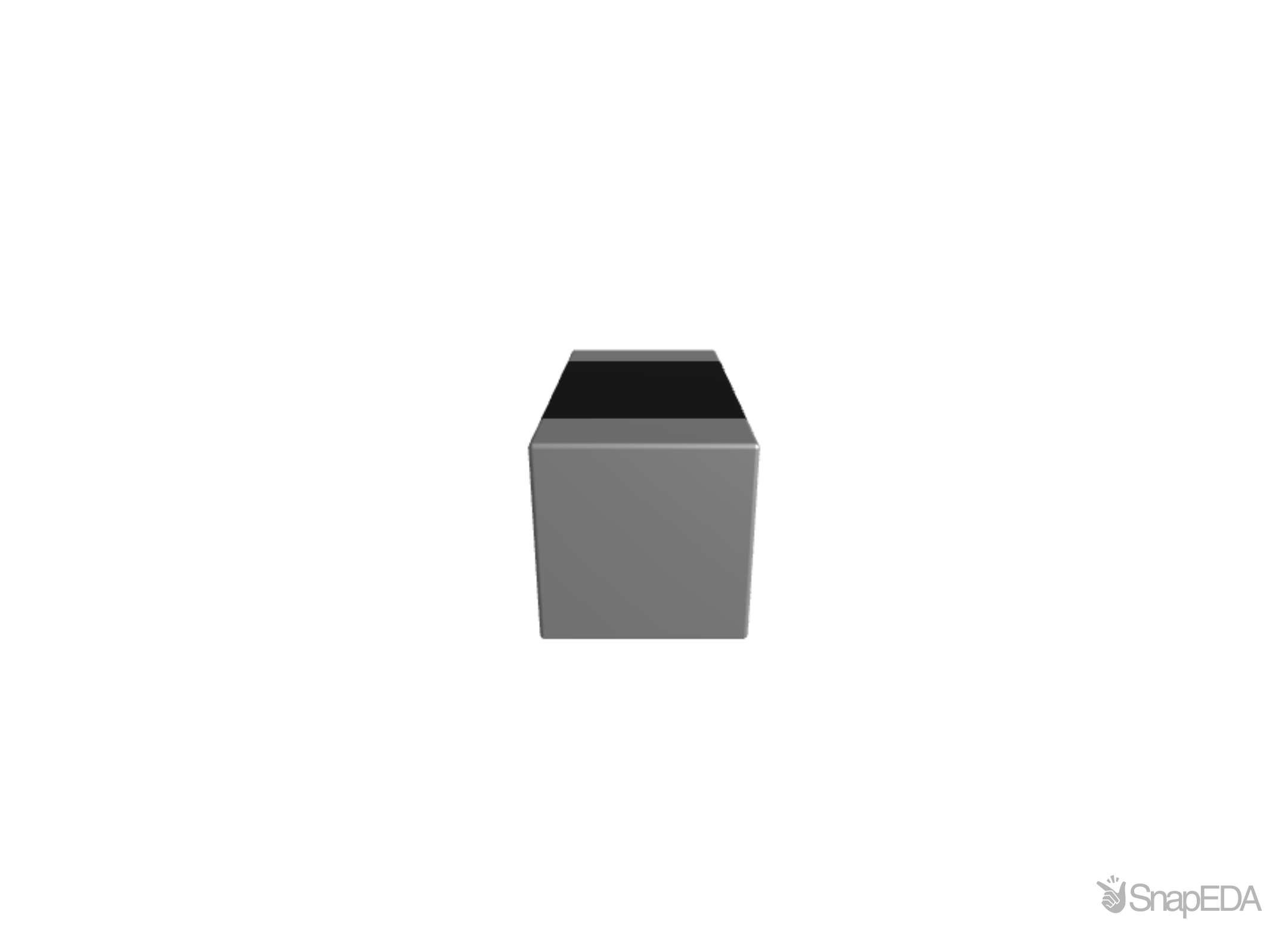

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 742792641
| Part Name | 742792641 |
| Manufacturer | Wurth Electronics |
| Product Series Size | 0603 |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | Size 0603; Z @ 100 MHz = 300 Ω; Zmax = 450 Ω @ 250 MHz; IR = 2000 mA; RDC = 0.15 Ω |
| Product Family | Ferrites For PCB Assembly |
| Weight | 0.004 |
| Ro Hs Approval | 2011/65/EU&2015/863 |
| Spq | 4000 |
| Current Revision (A) | 5.10.0 |
| Packaging Type | 7''Reel |
| Height | 0.8 mm |
| Reach Approval | (EC)1907/2006 |
| Width | 0.8 mm |
| Length | 1.6 mm |
| Product Unit | eiSos |
| Operating Temperature | -55 °C up to +125 °C |
| Product Group Description | EMC Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
