AD7890ARZ-10
LC2MOS 8-Channel, 12-Bit Serial Data Acquisition System
Availability: In Stock
Package Type: SOIC -24
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AD7890ARZ-10 by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

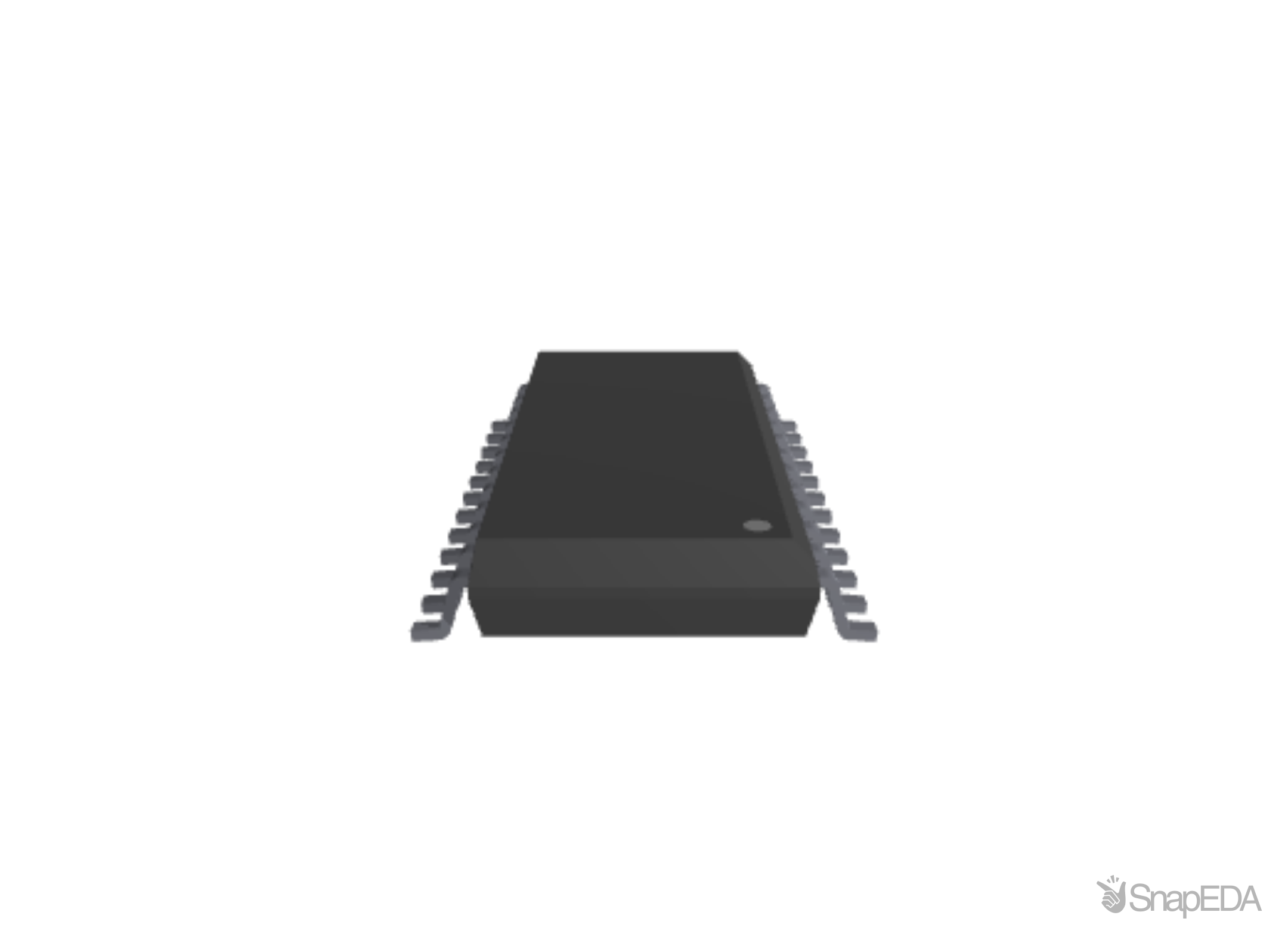

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AD7890ARZ-10
| Part Name | AD7890ARZ-10 |
| Manufacturer | Analog Devices |
| Product Category | Multiplexed A/D Converters |
| Package | SOIC 300 MIL |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 9/28/2006 4:53:20 AM |
| Pins | 24 |
| Product Link | https://www.analog.com/en/products/ad7890.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 85C |
| Product Lifecycle | Production |
| RoHS | Y |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
