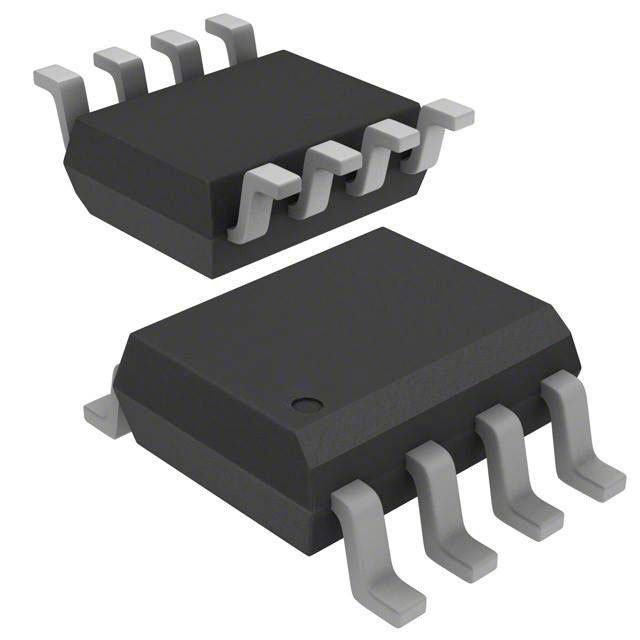

ADA4062-2BRZ-R7
The ADA4062-2 and ADA4062-4 are dual and quad JFET-input amplifiers with industry-leading performance. They offer lower power, offset voltage, drift, and ultralow bias current. The ADA4062-2 B grade (SOIC package) features a typical low offset voltage of 0.5 mV, an offset drift of 4 μV/°C, and a bias current of 2 pA. The ADA4062 family is ideal for various applications, including process control, industrial and instrumentation equipment, active filtering, data conversion, buffering, and power control and monitoring. With a low supply current of 165 μA per amplifier, they are well suited for lower power applications. The ADA4062 family is also specified for the extended industrial temperature range of −40°C to +125°C. The ADA4062-2 is available in lead-free, 8-lead SOIC, 8-lead MSOP, and 10-lead LFCSP (1.6 mm × 1.3 mm × 0.55 mm) packages, and the ADA4062-4 is available in a lead-free, 14-lead TSSOP package. Applications Power control and monitoring Active filters Industrial/process control Body probe electronics Data acquisition Integrators Input buffering
Availability: Out of Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADA4062-2BRZ-R7 by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADA4062-2BRZ-R7
| Part Name | ADA4062-2BRZ-R7 |
| Manufacturer | Analog Devices |
| Product Category | Low Input Bias Current Op Amps (≤100 pA) |
| Package | SOIC 150 MIL |
| MOQ | 0 |
| RoHS value | Yes |
| Part Launch Date | 8/8/2008 4:53:20 AM |
| Pins | 8 |
| Product Link | https://www.analog.com/en/products/ada4062-2.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 125C |
| Product Lifecycle | Production |
| RoHS | Yes |
