ADP5052ACPZR7
IC, BUCK REGULATOR, 0.2A, LFCSP-48; Supply Voltage:15V; No. of Step-Down DC - DC Converters:4; No. of LDO Regulators:1; No. of Regulated Outputs:5; Digital IC Case:LFCSP; No. of Pins:48Pins; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Product Range:ADP5052 Series; Automotive Qualification Standard:-; RoHS Phthalates Compliant:Yes; MSL:-; SVHC:No SVHC (07-Jul-2017); Dropout Voltage Vdo:80mV; Input Voltage Max:15V; Input Voltage Min:1.7V; LDO Regulator Case Style:LFCSP; No. of Outputs:5Outputs; Output Current - Output 1:4A; Output Current - Output 2:1200mA; Output Voltage - Output 1:4.75V; Output Voltage - Output 2:13.5V; Regulator Output Type:Adjustable
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADP5052ACPZR7 by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

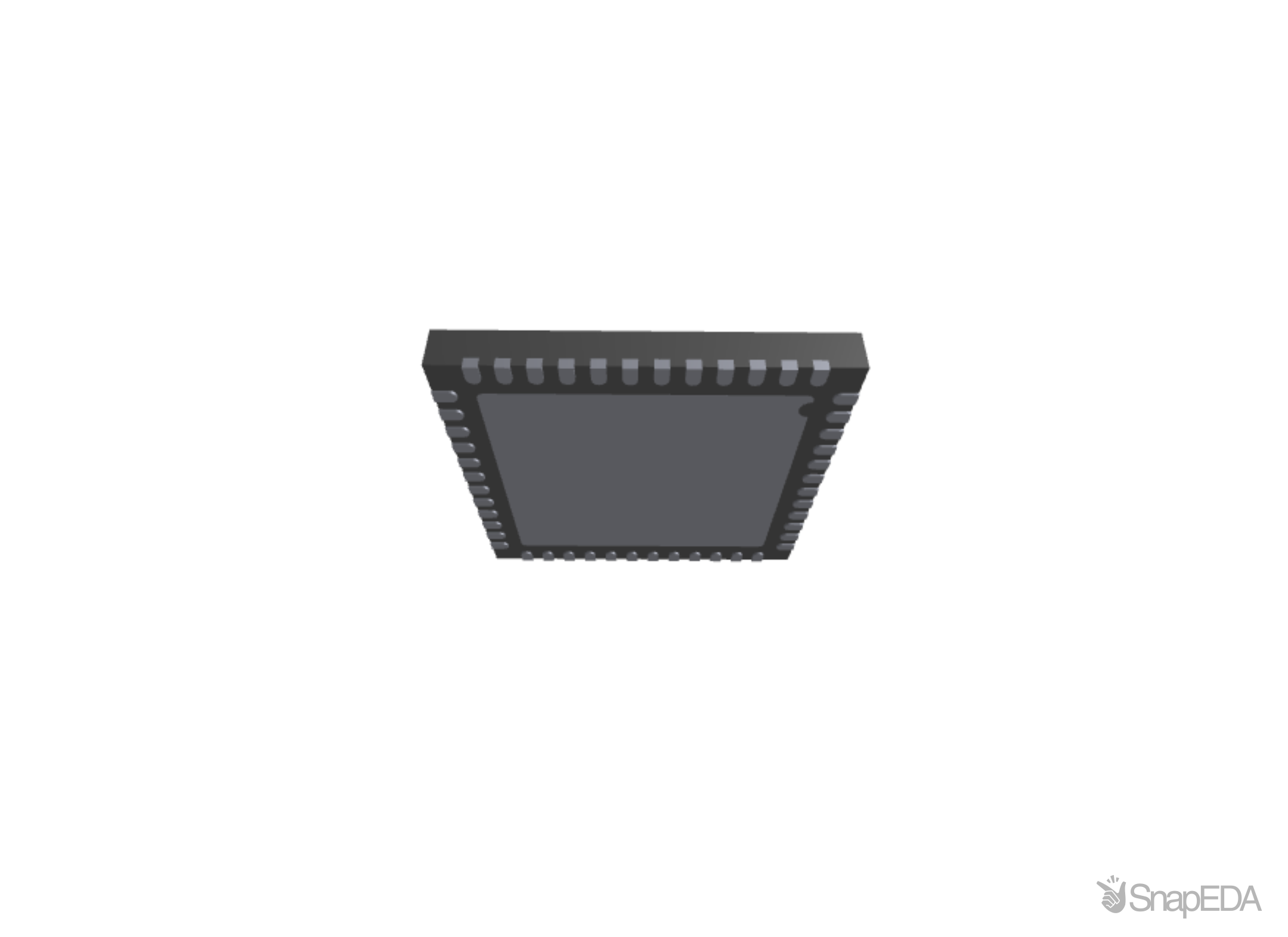

3D Model
