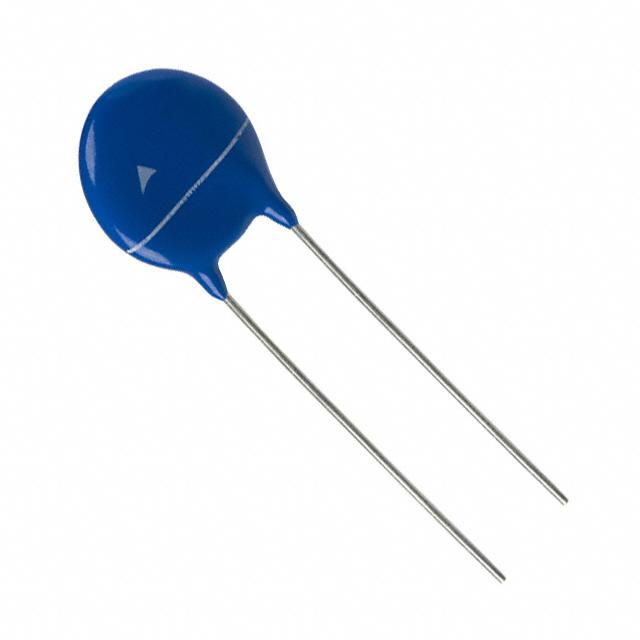

B72214S0271K101
430 V 4.5 kA Varistor 1 Circuit Through Hole Disc 14mm
Availability: Out of Stock
Package Type: DISC-14
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B72214S0271K101 by EPCOS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B72214S0271K101
| Part Name | B72214S0271K101 |
| Manufacturer | EPCOS |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Varistor Voltage (V) | 430 (V) |
| Diameter | 15.5 (mm) |
| Dimensions | 15.5 (Dia.) x 5 (mm) |
| Clamping Voltage (V) | 710 (V) |
| Series | Standard |
| Energy | 71 (J) |
| Material | Metal |
| Maximum Ac Voltage Rating (V) | 275 (V) |
| Thickness | 5 (mm) |
| Capacitance | 440 (pF) |
| Maximum Surge Current (A) | 4500 (A) |
| Clamping Current (A) | 50 (A) |
| Lead Pitch | 7.5 (mm) |
| Maximum Dc Voltage Rating (V) | 350 (V) |
No issues have been reported for the B72214S0271K101
