CMT-8530S-SMT-TR
SnapVerified
8.5 mm, 3.6 Vo-p, 90 dB, Surface Mount (SMT), Magnetic Audio Transducer Buzzer
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CMT-8530S-SMT-TR by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

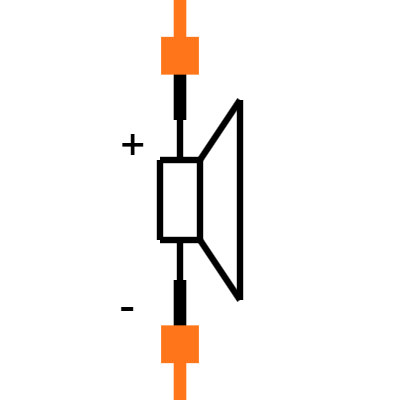

Symbol
No web preview
This Symbol is Available for

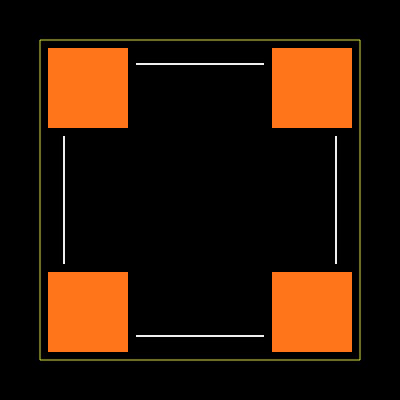

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CMT-8530S-SMT-TR
| Part Name | CMT-8530S-SMT-TR |
| Manufacturer | Same Sky |
| Mounting Style | Surface Mount |
| Input Type | Vo-p |
| Operating Temp MAX (°C) | 75 |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/cmt-8530s-smt-tr |
| Curr. Consumption (mA) | 90 |
| Rated Voltage (V) | 3.6 |
| Wave Solderable | No |
| Operating Temp MIN (°C) | -30 |
| Driving Circuit | No |
| Length (mm) | 8.5 |
| Width (mm) | 8.5 |
| Shape | Square |
| Washable | Yes |
| Dimensions LxWxH (mm) | 8.5 x 8.5 x 3 |
| Illumination | No |
| Sound Pressure (dB) | 90 |
| Dimensions LxWxH (in) | 0.33 x 0.33 x 0.12 |
| Technology | Magnetic |
| RoHS | True |
| Height (mm) | 3 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Supply Voltage (V) | 3 (V) |
| Drive Type | External |
| Sound Level | 90 (dB) |
| Mounting Type | Surface Mount |
| Maximum Supply Voltage (V) | 5 (V) |
