DS05-127-2-04BK-SMT-TR
SnapVerified
4 Position, Surface Mount, 1.27 mm Pitch, Flat Slide Actuator, Flat Bottom, SMT Pin, DIP Switch
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DS05-127-2-04BK-SMT-TR by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

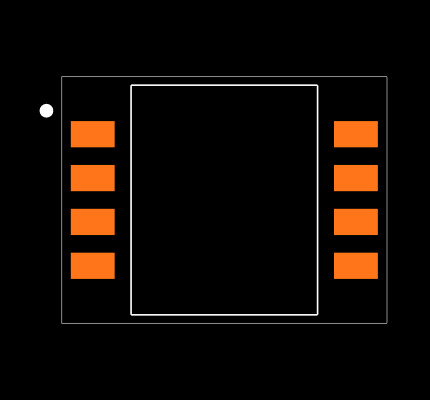

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DS05-127-2-04BK-SMT-TR
| Part Name | DS05-127-2-04BK-SMT-TR |
| Manufacturer | Same Sky |
| Washable | No |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/ds05-127-2-04bk-smt-tr |
| Operating Temp MIN (°C) | -40 |
| Width (mm) | 5.4 |
| Dimensions LxWxH (mm) | 6.65 x 5.4 x 2.4 |
| Number of Positions | 4 |
| Switching Current Rating (mA) (A) | 25 |
| Actuator Level | Flat |
| Operating Temp MAX (°C) | 85 |
| Bottom | Flat |
| Switching Voltage Rating (Vdc) (V) | 24 |
| Pitch (mm) | 1.27 |
| Cap | No |
| Non-Switching Voltage Rating (Vdc) (V) | 50 |
| Length (mm) | 6.65 |
| Termination | Gull Wing |
| Height (mm) | 2.4 |
| Orientation | Horizontal |
| Pin | SMT |
| Series | DS05-127-SMT |
| Mounting Style | SMT |
| Actuator Type | Slide |
| Dimensions LxWxH (in) | 0.26 x 0.21 x 0.09 |
| Non-Switching Current Rating (mA) (A) | 100 |
| Switch Type | DIP |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
