EEEFH1J470L

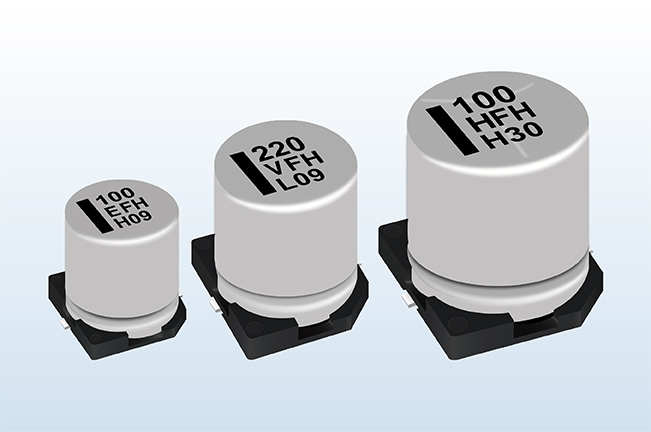

Series/Type: FH [HF] (High temp. reflow), Rated voltage (V): 63, Capacitance (µF): 47, Leakage current (max.) (µA): 29.6, Category temperature range (°C): -55 to 105, Body diameter (mm): 8, Body length (mm): 10.2, Rated ripple current (mA): 250, E.S.R. (max. value) (mΩ): 1000, Endurance (h): 7000
Availability: In Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EEEFH1J470L by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
