ERJPB6D1583V
Series/Type: High Precision Thick Film Chip Resistors , Power Rating (W): 0.25, Chip Size (LxW(EIA)) (mm): 2.0 x 1.25 (EIA:0805), Resistance Values (Ω): 158000, Resistance Tolerance (%): 0.5, T.C.R (×10⁻⁶/K): ±50
Availability: In Stock
Package Type: 805-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ERJPB6D1583V by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

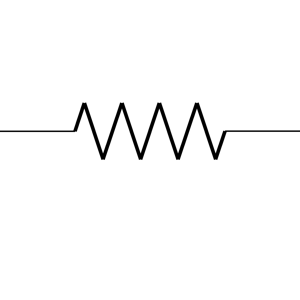

Symbol
No web preview
This Symbol is Available for

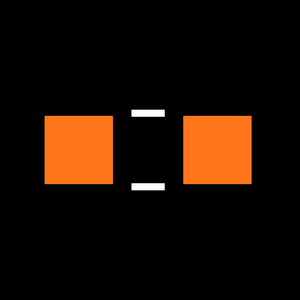

Footprint
