ETQP5M470YSC

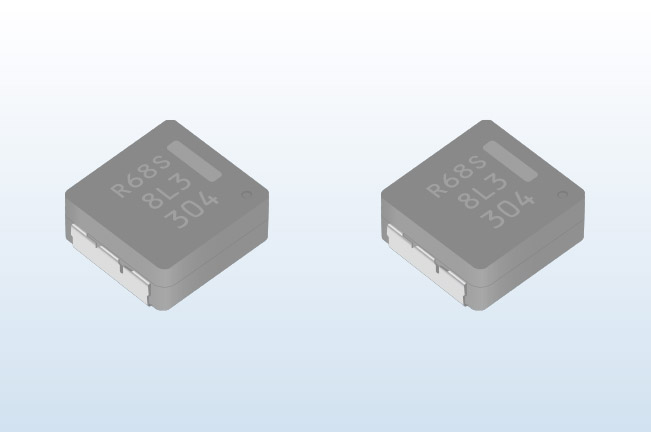

Series/Type: High Vibration Acceleration-resistant Power Choke Coil for Automotive-MS (MC type), Size [L?] (mm): 10.910.0, Height (mm): 5.4, Inductance (H): 44, DC Resistance [Typ.] (at 20?) (m?): 102, DC Resistance [max.] (at 20?) (m?): 112.2, Rated Current [Typ.] (?T=40K, FR4, t=1.6 mm,?Four-layer PWB) (A): 3.4, Rated Current [Typ.] (?T=40K, High heat dissipation PWB) (A): 4.1, Rated Current [Typ.] (?L=30%) (A): 5.7, Weight (Typ.) (g): 3.1, AEC-Q200 compliant
