EXBU14154JX

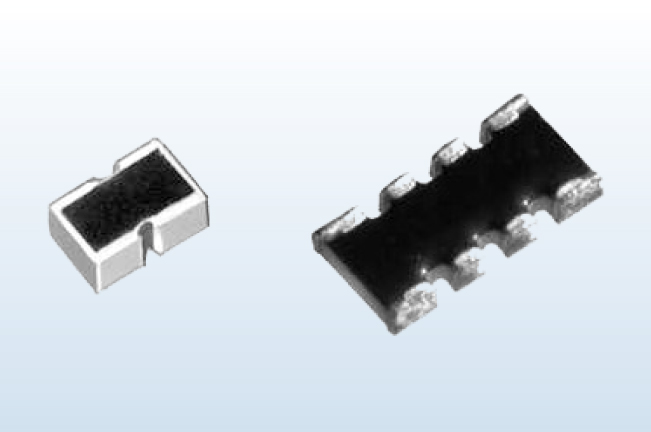

Series/Type: Anti-Sulfurated Chip Resistor Array, Power Rating (W): 0.031, Chip Size (LxW) (mm): 0.8 X 0.6, Resistance Values (Ω): 150000, Resistance Tolerance (%): 5, Terminal Pitch (mm): 0.5, Type of Circuit: Isolated Circuit, Number of Elements (piece): 2, T.C.R (×10⁻⁶/K): ±200, Number of Terminals (piece): 4
Availability: Out of Stock
Package Type: NON STANDARD-4
CAD Models: Symbol, Footprint, 3D Model
