EXBU241R8JX
Series/Type: Anti-Sulfurated Chip Resistor Array, Power Rating (W): 0.063, Chip Size (LxW) (mm): 1.0 X 1.0, Resistance Values (Ω): 2, Resistance Tolerance (%): 5, Terminal Pitch (mm): 0.65, Type of Circuit: Isolated Circuit, Number of Elements (piece): 2, T.C.R (×10⁻⁶/K): Not Specified, Number of Terminals (piece): 4
Availability: Out of Stock
Package Type: NON STANDARD-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EXBU241R8JX by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

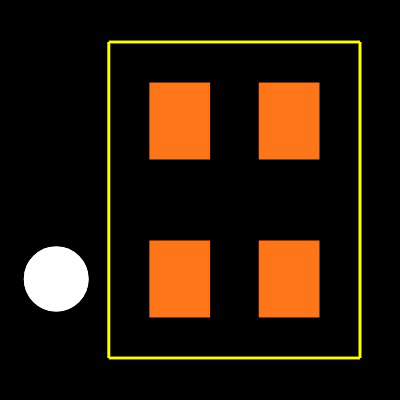

Footprint
