EXBU38300JV

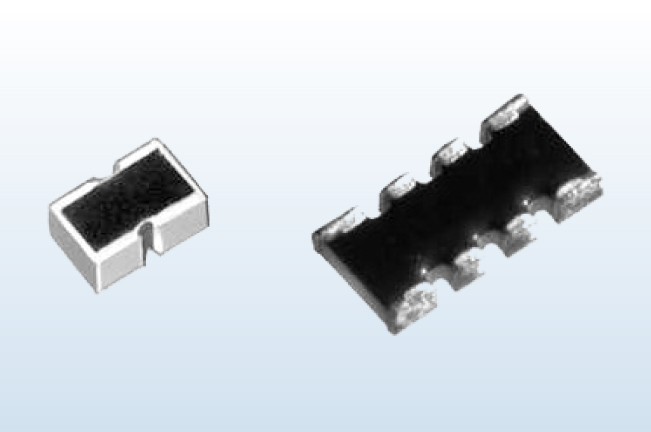

Series/Type: Anti-Sulfurated Chip Resistor Array, Power Rating (W): 0.063, Chip Size (LxW) (mm): 3.2 X 1.6, Resistance Values (Ω): 30, Resistance Tolerance (%): 5, Terminal Pitch (mm): 0.8, Type of Circuit: Isolated Circuit, Number of Elements (piece): 4, T.C.R (×10⁻⁶/K): ±200, Number of Terminals (piece): 8
Availability: Out of Stock
Package Type: NON STANDARD-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EXBU38300JV by Panasonic and for millions of electronic components.
