EXCX4CZ200X
Series/Type: Common mode Filters (0202 small size, Wide band width), Size [L×W] (mm): 0.65×0.50, Height (mm): 0.3, Impedance [Common Mode] (Ω): 20, Rated Voltage [DC] (V): 5, Rated Current [DC] (mA): 100, DC Resistance [max.] (Ω): 3.0±30%, Number of circuit: 1
Availability: In Stock
Package Type: 0202
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EXCX4CZ200X by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

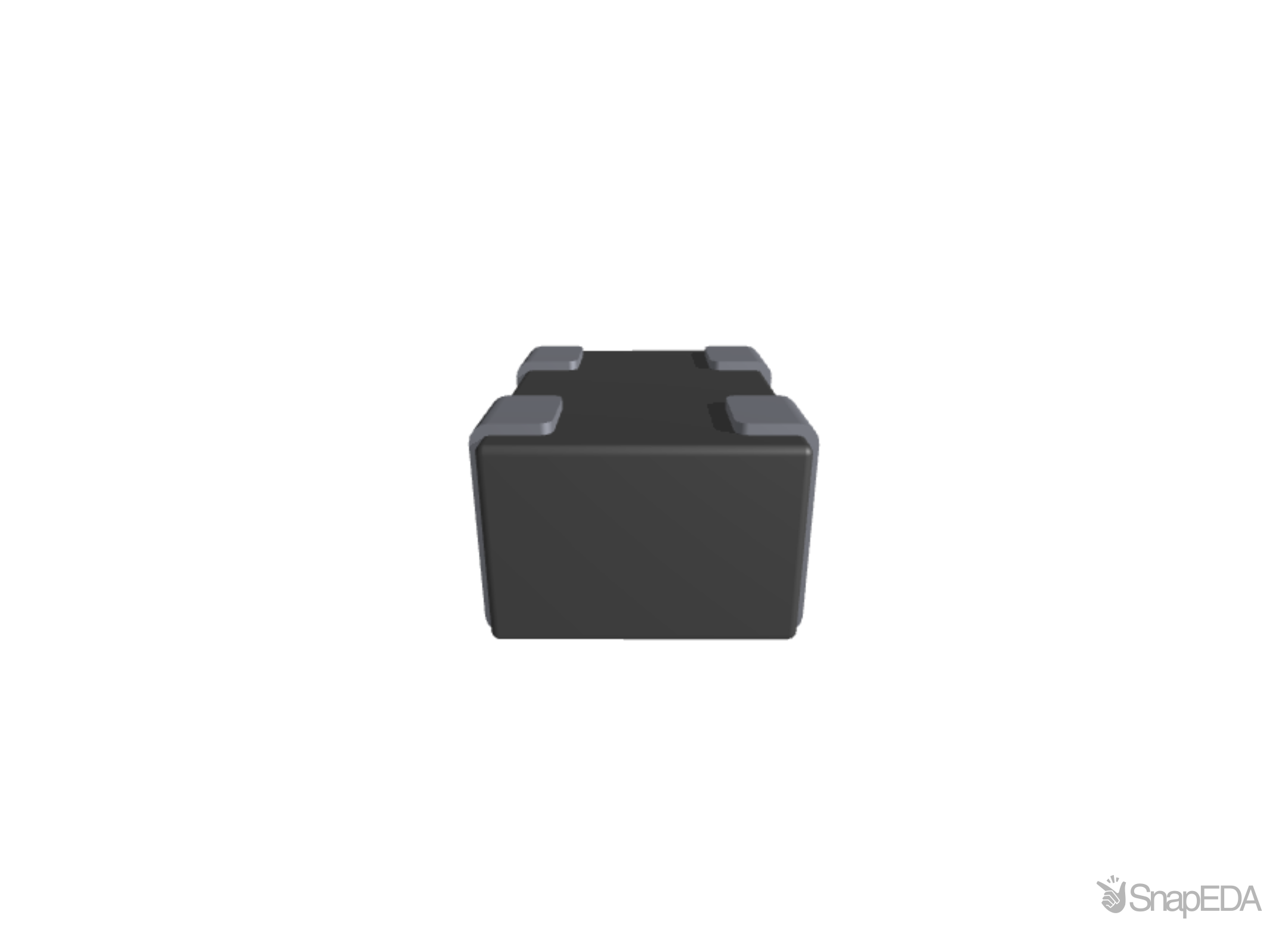

3D Model
