EZJP1V420FM

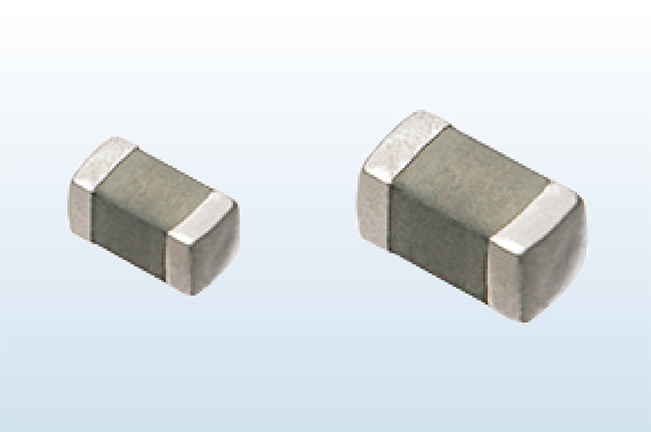

Series/Type: Chip Varistor for Automotive, Type: 0603 Size, Max. Allowable Voltage (V): 30, Varistor Voltage (Range) (V): 33.6 - 50.4, Capacitance (pF): -, Capacitance (max.) (pF): 68
Availability: In Stock
Package Type: 0603-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EZJP1V420FM by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
