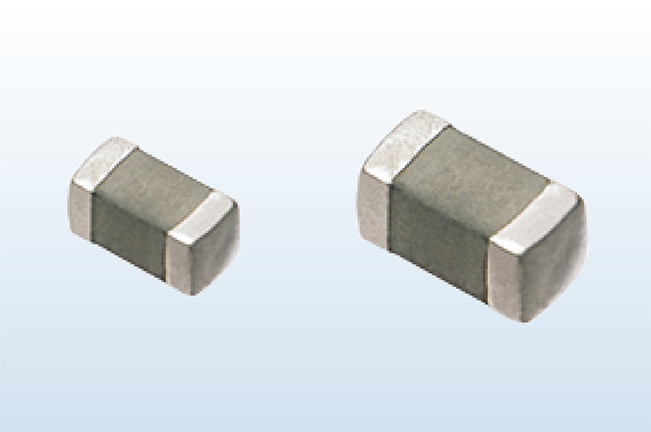

EZJZ1V420FA
Series/Type: Chip Varistor [Voltage/Signal lines], Type: 0603 Size, Max. Allowable Voltage (V): 30, Varistor Voltage (Range) (V): 37.8 - 46.2, Capacitance (pF): -, Capacitance (max.) (pF): 68
Availability: In Stock
Package Type: 0603-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EZJZ1V420FA by Panasonic and for millions of electronic components.
