HFBR-1414Z
Fiber Optic Transmitters, Receivers, Transceivers Low Cost Hi Power ST FO Tx-Pb Free
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the HFBR-1414Z by Broadcom and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

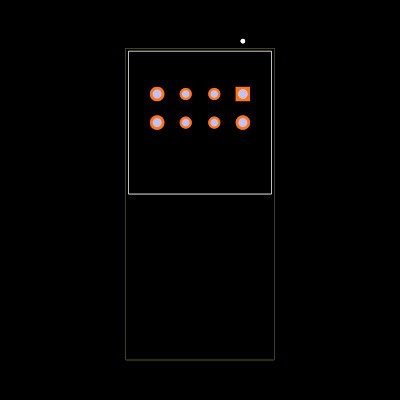

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the HFBR-1414Z
| Part Name | HFBR-1414Z |
| Manufacturer | Broadcom / Avago |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Transmitter Jitter At Maximum Data Rate | 7.56 (ns) |
| Dimensions | 27.2 x 12.7 x 10.2 (mm) |
| Mounting Type | Through Hole |
| Connector Shape | Round |
| Height | 10.2 (mm) |
| Width | 12.7 (mm) |
| Length | 27.2 (mm) |
| Number Of Pins | 8 |
| Peak Wavelength | 820 (nm) |
| Maximum Data Rate | 160 (MBd) |
We could not find inventory or pricing across major distributors for the HFBR-1414Z by Broadcom.
