HIH-4000-001

Name: HIH-4000-001
Brand: Honeywell

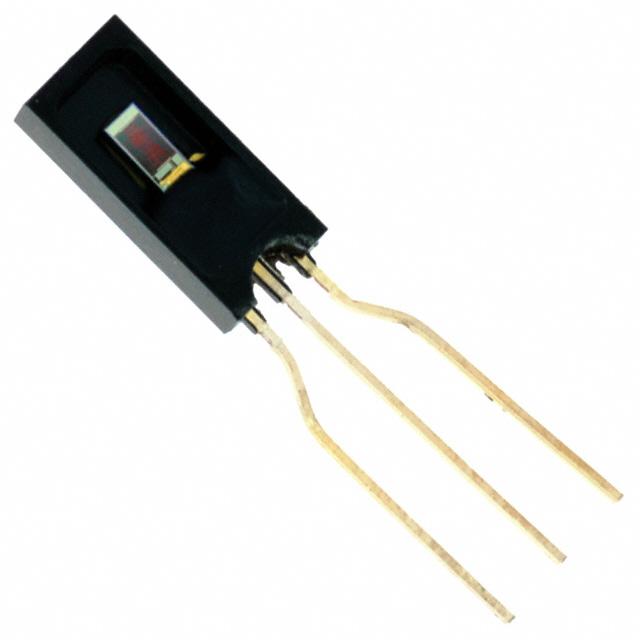

Sensor, +/- 3.5% RH (0-100 % RH Non-Condensing), +/- 2% RH (Typ.) at 50% RH | Honeywell HIH-4000-001

Availability: Out of Stock

Package Type: SIP-3

CAD Models: Symbol and Footprint

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the HIH-4000-001 by Honeywell and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the HIH-4000-001

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the HIH-4000-001

Part Name	HIH-4000-001
Manufacturer	Honeywell Sensing
Category	Electronic Components
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Dimensions	4.17 x 2.03 x 20.79 (mm)
Maximum Operating Supply Voltage (V)	5.8 V
Operating Temperature Range	-40 → +85 °C
Series	HIH-4000
Minimum Operating Supply Voltage (V)	4 V
Output Type	Analogue
Height	20.79 (mm)
Width	2.03 (mm)
Length	4.17 (mm)
Sensor Function	Humidity Sensor
Package Type	SIP
Interface Type	Analogue
Minimum Operating Temperature	-40 °C
Mounting Type	Through Hole
Maximum Operating Temperature	+85 °C
Sensor Gain	-4 (mV/°C)
Pin Count	3
Accuracy	±3.5 (%RH)

We could not find inventory or pricing across major distributors for the HIH-4000-001 by Honeywell.
