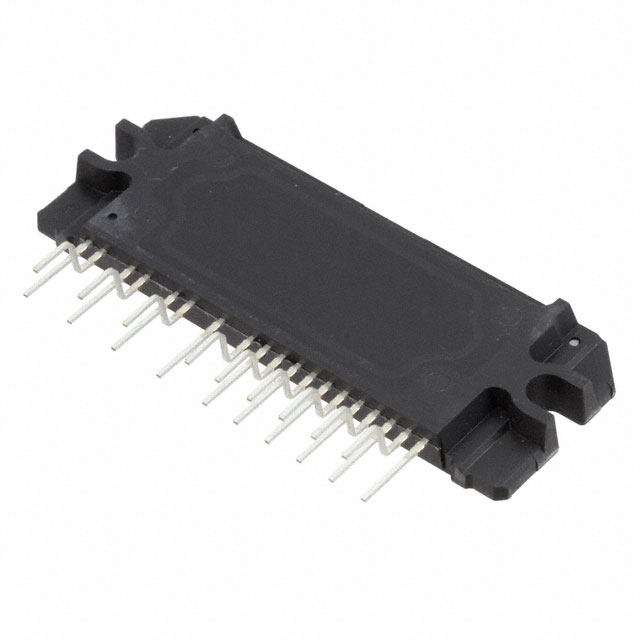

IRAMS06UP60A
Integrated Power Module IC, 3-Phase, Open Emitter, 600V, 6A, 23-Pin SIP-1
Availability: Out of Stock
Package Type: POWERSIP-23
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the IRAMS06UP60A by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the IRAMS06UP60A
| Part Name | IRAMS06UP60A |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Motor Type | AC Induction |
| Dimensions | 62 x 5 x 22.3 (mm) |
| Maximum Operating Supply Voltage (V) | 20 V |
| Series | Intelligent Power Module |
| Maximum Collector Emitter Voltage (V) | 600 V |
| Maximum Igbt Collector Current (A) | 6 (A) |
| Height | 22.3 (mm) |
| Width | 5 (mm) |
| Length | 62 (mm) |
| Package Type | SIP-1 |
| Mounting Type | Through Hole |
| Minimum Operating Temperature | -40 °C |
| Output Configuration | 3 Phase |
| Minimum Operating Supply Voltage (V) | 12 V |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 23 |
