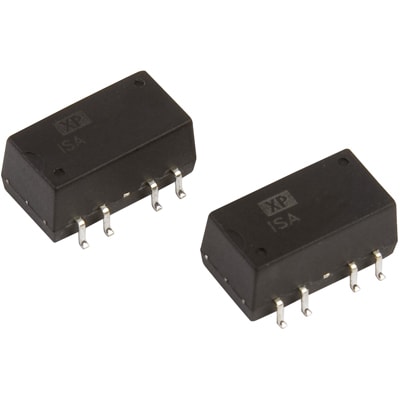

ISA2409
DC-DC Converter, 1W SDM, DUAL O/P, UNREG | XP Power ISA2409
Availability: In Stock
Package Type: SMD-10
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ISA2409 by XP Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ISA2409
| Part Name | ISA2409 |
| Manufacturer | XP Power |
| Category | Power Products |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 2 |
| Input Voltage Nominal (V) | 24 V dc |
| Output Current (A) | ±56 (mA) |
| Standards Met | EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F |
| Mounting Type | Surface Mount |
| Package | SMD |
| Maximum Temperature | +105 (°C) |
| Series | ISA |
| Input Voltage Range (V) | 21.6 → 26.4 V dc |
| Isolated | Yes |
| Width | 8.3 (mm) |
| Depth | 7 (mm) |
| Isolation Voltage (V) | 1.5 (kV dc) |
| Length | 15.24 (mm) |
| Minimum Temperature | -40 (°C) |
| Efficiency | 80 (%) |
| Output Voltage (V) | ±9 (V dc) |
| Power Rating | 1 (W) |
Inventory for the ISA2409 by XP Power from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
17
|
10 x $9.16
|
Visit Site |
No issues have been reported for the ISA2409
If you experienced any issues with this part, please report it.
