LD39020ATPU32R
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 4-DFN (1x1)
Availability: Out of Stock
Package Type: DFN-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LD39020ATPU32R by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

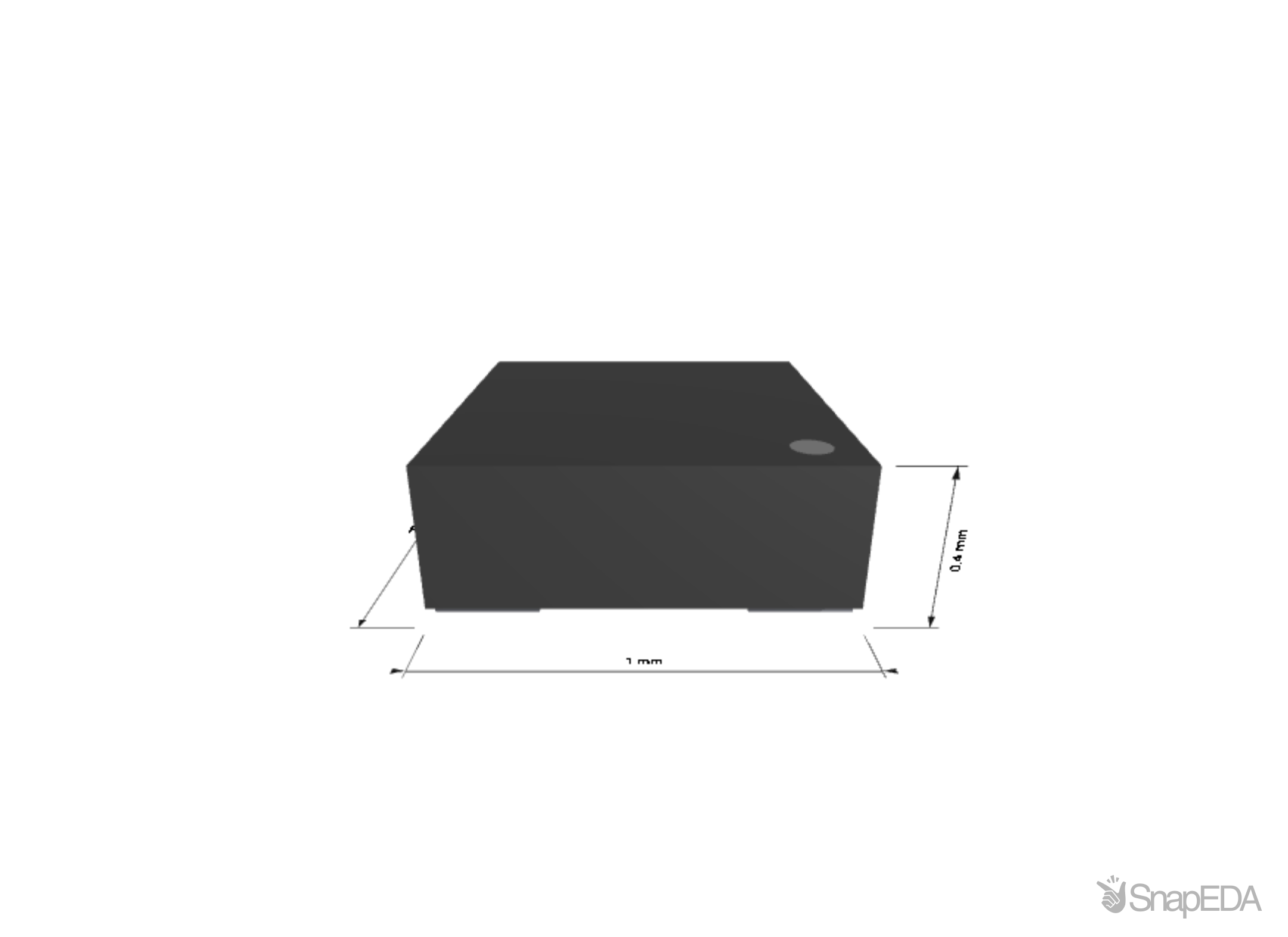

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LD39020ATPU32R
| Part Name | LD39020ATPU32R |
| Manufacturer | STMicroelectronics |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 0.01 %/mA |
| Dimensions | 1.05 x 1.05 x 0.35 (mm) |
| Line Regulation | 0.2 %/V |
| Maximum Output Current (A) | 200 (mA) |
| Accuracy | ±1.5 (%) |
| Regulator Type | Low Dropout Voltage |
| Output Type | Fixed |
| Height | 0.35 (mm) |
| Width | 1.05 (mm) |
| Length | 1.05 (mm) |
| Output Voltage (V) | 3.2 V |
| Package Type | DFN |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Minimum Input Voltage (V) | 1.5 V |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 4 |
| Maximum Input Voltage (V) | 5.5 V |
| Quiescent Current (A) | 100 (µA) |
