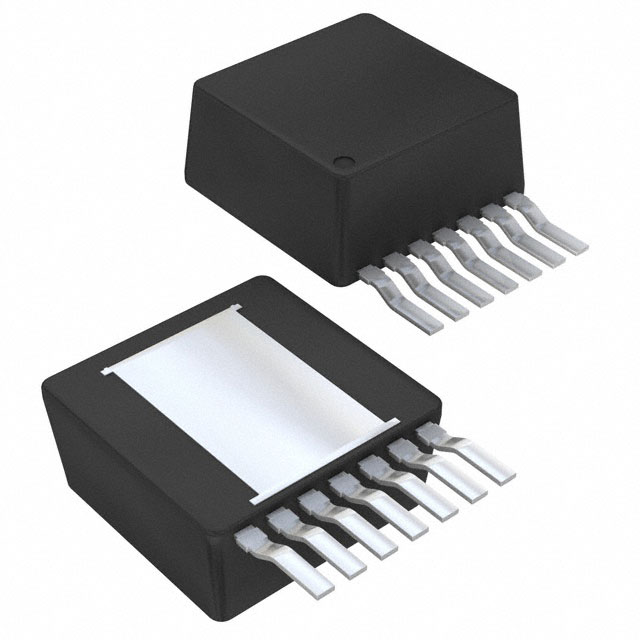

LMZ14202HTZ/NOPB
SIMPLE SWITCHER® 6V to 42V, 2A High Output Voltage Power Module
Availability: In Stock
Package Type: TO-PMOD-7
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LMZ14202HTZ/NOPB by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
