LT1389BCS8-5#PBF
IC, SM, VOLT REF, 5V; Termination Type:SMD; Operating Temperature Range:0°C to +70°C; Case Style:SOIC; No. of Pins:8; Base Number:1389; Temp, Coeff, +:50ppm/°C; Temp, Op. Max:70°C; Temp, Op. Min:0°C; Temperature Coefficient:50ppm/°C;;RoHS Compliant: Yes
Availability: In Stock
Package Type: SO-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LT1389BCS8-5#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

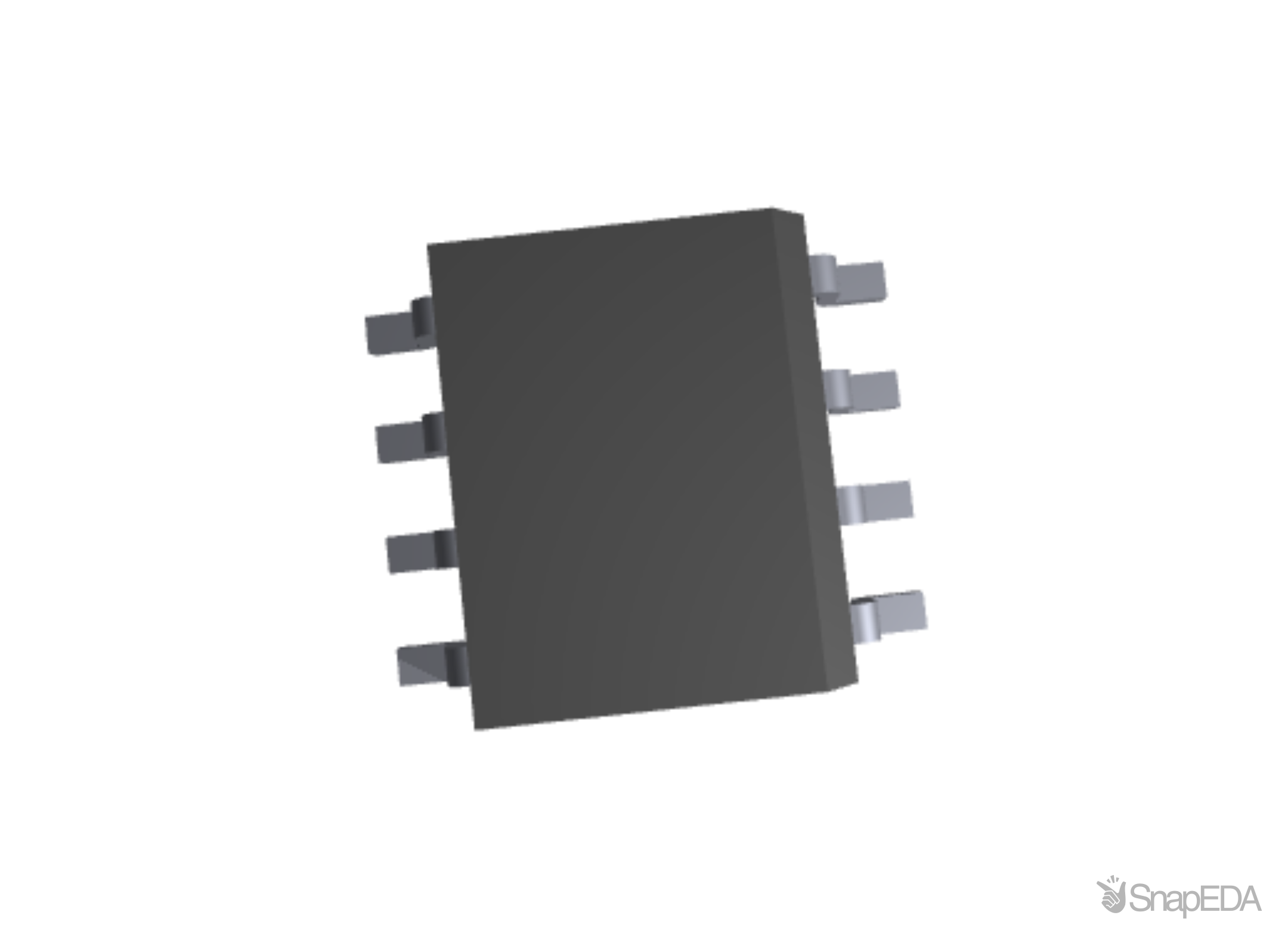

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LT1389BCS8-5#PBF
| Part Name | LT1389BCS8-5#PBF |
| Manufacturer | Analog Devices |
| Product Category | Micropower Voltage References |
| Package | SOIC 150 MIL |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 10/14/1998 4:00:00 AM |
| Temperature Range | 0 to 70C |
| Product Link | https://www.analog.com/en/products/lt1389.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 8 |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
