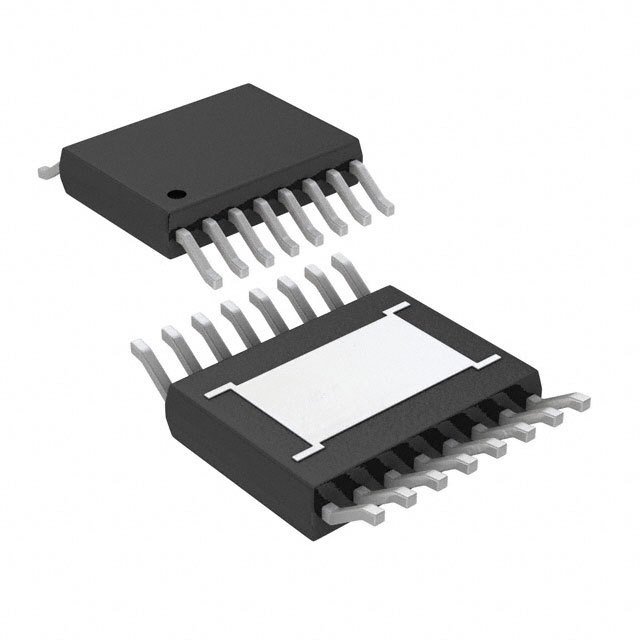

LT3761IMSE#PBF
CNTRL, PWM, 60V, CC/CV, 1MHZ, 16MSOP; Supply Voltage Range:4.5V to 60V; Digital IC Case Style:MSOP; No. of Pins:16; Frequency:1MHz; Operating Temperature Range:-40°C to +125°C; MSL:MSL 1 - Unlimited; SVHC:No SVHC (18-Jun-2012); Dimming Control Type:Analogue / PWM; Driver Case Style:MSOP; LED Driver Application:Battery Chargers, High Power LED; No. of Outputs:1; Switching Frequency:1MHz; Topology:Boost, Buck, Buck-Boost, Flyback, SEPIC
Availability: In Stock
Package Type: MSOP-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LT3761IMSE#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
