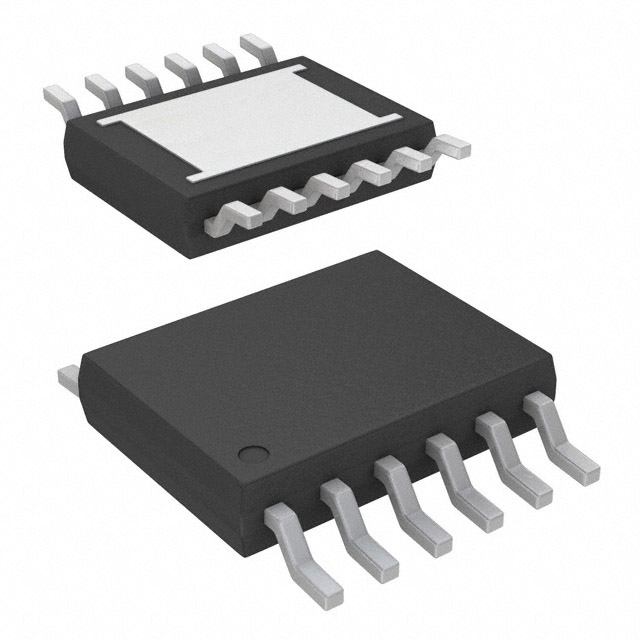

LTC3245IMSE#PBF
The LTC3245 is a switched capacitor buck-boost DC/DC converter that produces a regulated output (3.3V, 5V or adjustable) from a 2.7V to 38V input. The device uses switched capacitor fractional conversion to maintain regulation over a wide range of input voltage. Internal circuitry automatically selects the conversion ratio to optimize efficiency as input voltage and load conditions vary. No inductors are required. The unique constant frequency architecture provides a lower noise output than conventional charge pump regulators. To optimize efficiency at the expense of slightly higher output ripple, the device has pin selectable Burst Mode operation. Low operating current (20μA with no load, 4μA in shutdown) and low external parts count (three small ceramic capacitors) make the LTC3245 ideally suited for low power, space constrained automotive/industrial applications. The device is short-circuit and overtemperature protected, and is available in thermally enhanced 12-pin MSOP and low profile 3mm × 4mm 12-pin DFN packages. Applications Automotive ECU/CAN Transceiver Supplies Industrial Housekeeping Supplies Low Power 12V to 5V Conversion
Availability: In Stock
Package Type: MSOP-12
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTC3245IMSE#PBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

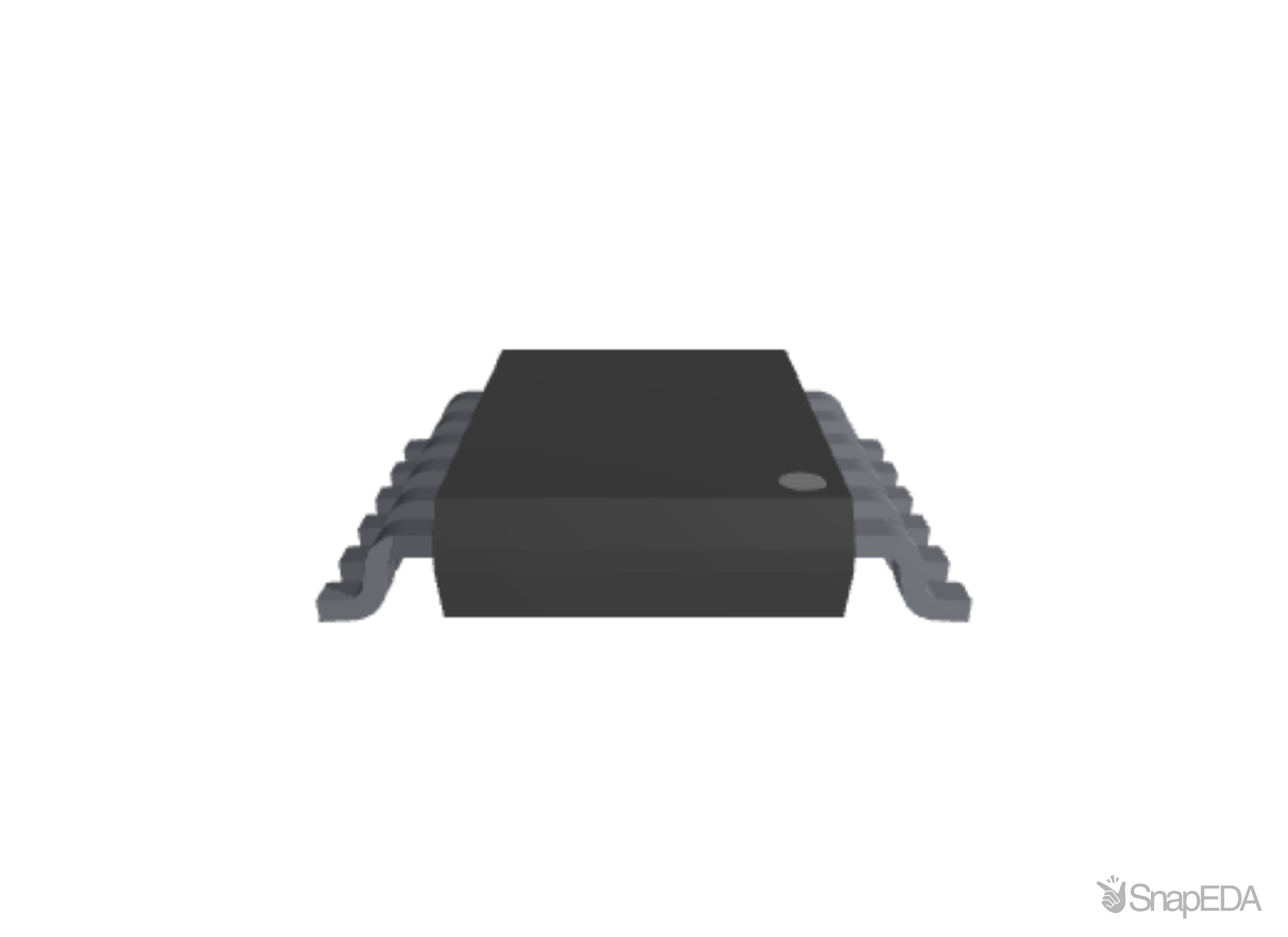

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTC3245IMSE#PBF
| Part Name | LTC3245IMSE#PBF |
| Manufacturer | Analog Devices |
| Product Category | High Voltage Charge Pumps |
| Package | EXPOSED PAD MINI_SOIC |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 3/5/2013 7:13:32 PM |
| Pins | 12 |
| Product Link | https://www.analog.com/en/products/ltc3245.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 125C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the LTC3245IMSE#PBF by Analog Devices from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,796
|
|
Visit Site | |
| Analog Devices |
3,542
|
|
Visit Site | |
| Arrow Electronics |
26
|
111 x $4.42
|
Visit Site | |
| Newark |
57
|
|
Visit Site | |
| Verical |
26
|
26 x $4.42
|
Visit Site |
No issues have been reported for the LTC3245IMSE#PBF
