LTC4214-2IMS#TRPBF
The LTC4214 negative voltage Hot Swap™ controller allows a board to be safely inserted and removed from a live backplane. Output current is controlled by three stages of current limiting: a timed circuit breaker, active current limiting and a fast feedforward path that limits peak current under worst-case catastrophic fault conditions. Adjustable undervoltage and overvoltage detectors disconnect the load whenever the input supply exceeds the desired operating range. The LTC4214 controls negative supplies ranging from near zero to –16V. A multifunction timer delays initial start-up and controls the circuit breaker’s response time. This response time is accelerated by sensing excessive MOSFET drain voltage, keeping the MOSFET within its safe operating area (SOA). An adjustable soft-start circuit controls MOSFET inrush current at start-up. A power good status output can enable a power module at start-up or disable it if the circuit breaker trips. The LTC4214-1 latches off after a circuit breaker fault times out. The LTC4214-2 provides automatic retry after a fault. The LTC4214 is available in the 10-pin MSOP package. Applications Hot Board Insertion Electronic Circuit Breaker Negative Power Supply Control Central Office Switching High Availability Servers Disk Arrays Optical Networking/Switching ECL
Availability: Out of Stock

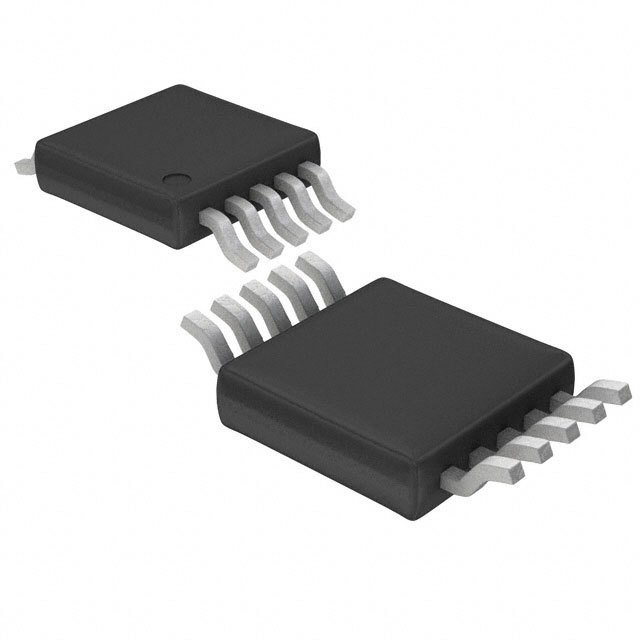

Package Type: MSOP-10
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTC4214-2IMS#TRPBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTC4214-2IMS#TRPBF
| Part Name | LTC4214-2IMS#TRPBF |
| Manufacturer | Analog Devices |
| Product Category | Low Voltage Hot Swap Controllers |
| Package | MICRO SOIC |
| MOQ | 0 |
| RoHS value | Yes |
| Part Launch Date | 11/21/2002 5:00:00 AM |
| Temperature Range | -40 to 85C |
| Product Link | https://www.analog.com/en/products/ltc4214.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 1 |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the LTC4214-2IMS#TRPBF
