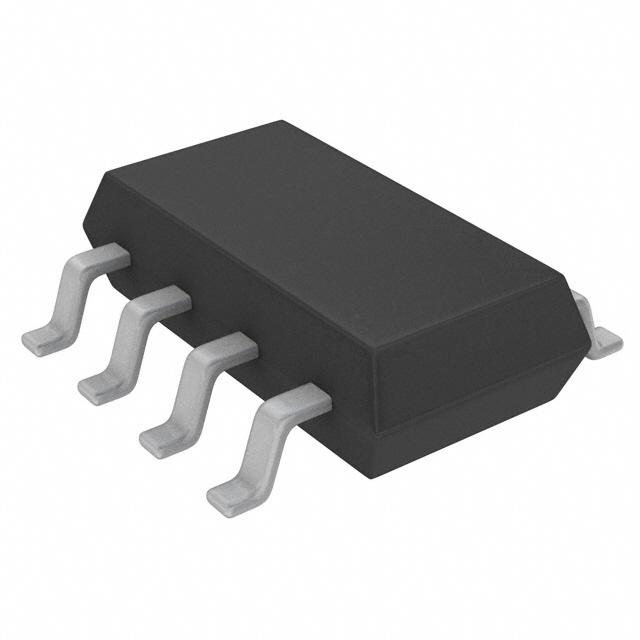

LTC4365CTS8-1#TRMPBF
The LTC4365 protects applications where power supply input voltages may be too high, too low or even negative. It does this by controlling the gate voltages of a pair of external N-channel MOSFETs to ensure that the output stays within a safe operating range.The LTC4365 can withstand voltages between –40V and 60V and has an operating range of 2.5V to 34V, while consuming only 125μA in normal operation. Two comparator inputs allow configuration of the overvoltage (OV) and undervoltage (UV) set points using an external resistive divider. A shutdown pin provides external control for enabling and disabling the MOSFETs as well as placing the device in a low current shutdown state. A fault output provides status of the gate pin pulling low. A fault is indicated when the part is in shutdown or the input voltage is outside the UV and OV set points. The LTC4365 has a 36ms turn-on delay that debounces live connections and blocks 50Hz to 60Hz AC power. For fast recovery after faults, the LTC4365-1 has a reduced 1ms turn-on delay. Applications Portable Instrumentation Industrial Automation Laptops Automotive Surge Protection
Availability: In Stock
Package Type: SOT-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LTC4365CTS8-1#TRMPBF by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LTC4365CTS8-1#TRMPBF
| Part Name | LTC4365CTS8-1#TRMPBF |
| Manufacturer | Analog Devices |
| Product Category | Surge Stopper, Overvoltage, and Overcurrent Protection |
| Package | TSOT-23 5, 6, 8 lead |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 9/10/2010 8:14:39 PM |
| Pins | 8 |
| Product Link | https://www.analog.com/en/products/ltc4365.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | 0 to 70C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
