MAX6613MXK+T
Temperature Sensor Analog, Local -55°C ~ 130°C 11.23mV/°C SC-70-5
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MAX6613MXK+T by Maxim Integrated and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

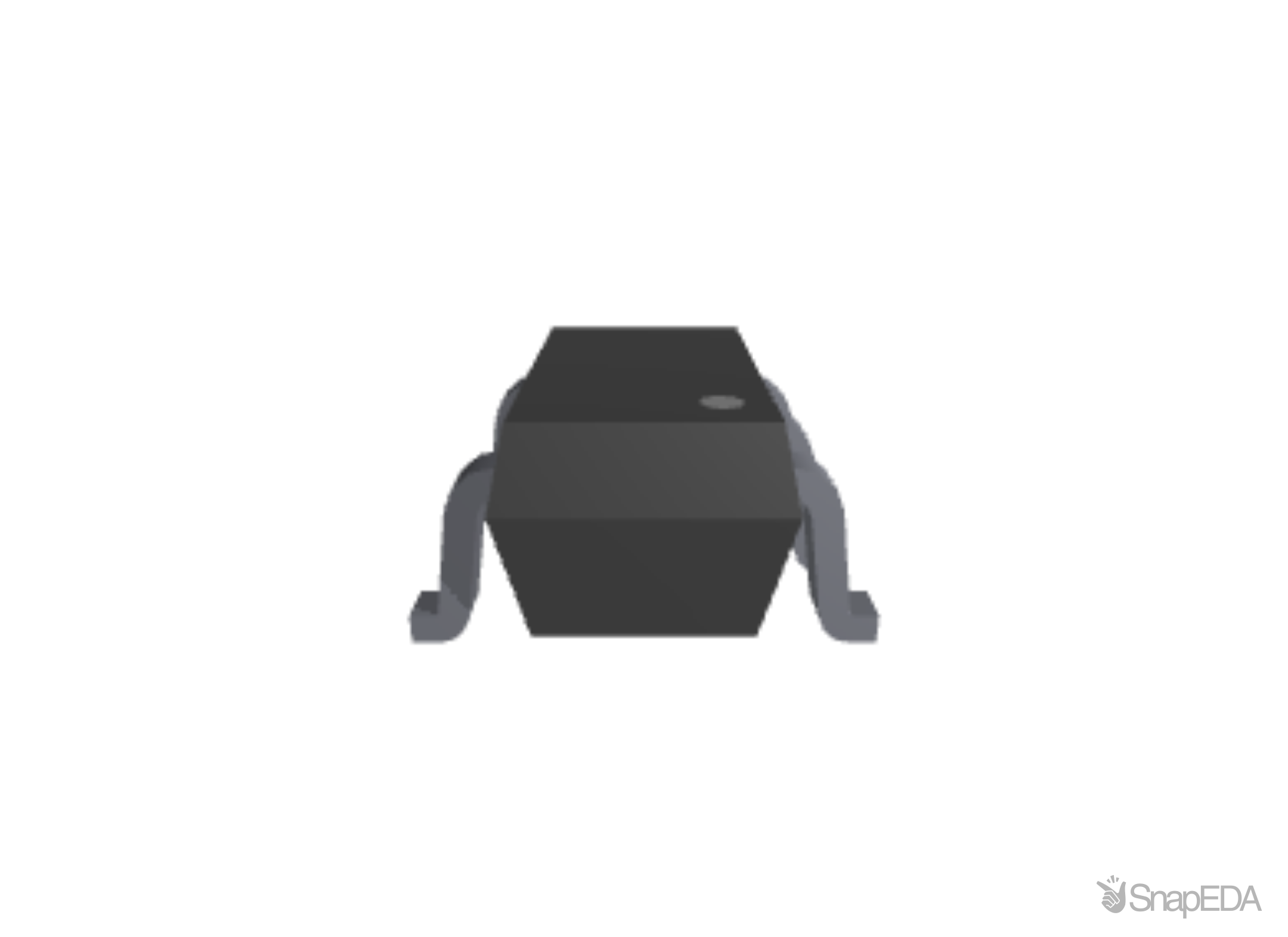

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MAX6613MXK+T
| Part Name | MAX6613MXK+T |
| Manufacturer | Maxim Integrated Products |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 2.2 x 1.35 x 1 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Operating Temperature Range | -55 to +130 °C |
| Maximum Operating Temperature | +130 °C |
| Minimum Operating Supply Voltage (V) | 1.8 V |
| Output Type | Analogue |
| Height | 1 (mm) |
| Width | 1.35 (mm) |
| Length | 2.2 (mm) |
| Package Type | SC-70 |
| Sensor Function | Temperature |
| Minimum Operating Temperature | -55 °C |
| Mounting Type | Surface Mount |
| Sensor Gain | -11.47 (mV/°C) |
| Pin Count | 5 |
| Accuracy | ±4 (°C) |
