MCP2562-E/P

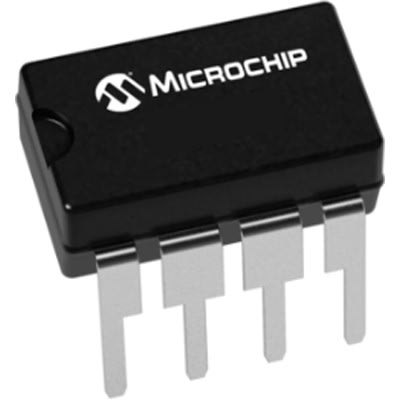

Microchip MCP2562-E/P, CAN Transceiver 1-channel IEC 61000-4-2, 8-Pin PDIP | Microchip Technology Inc. MCP2562-E/P
Availability: Out of Stock
Package Type: DIP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MCP2562-E/P by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MCP2562-E/P
| Part Name | MCP2562-E/P |
| Manufacturer | Microchip |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Data Rate | 1 (Mbps) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Number Of Transceivers | 1 |
| Mounting Type | Through Hole |
| Minimum Operating Supply Voltage (V) | 4.5 V |
| Maximum Supply Current (A) | 70 mA |
| Height | 5 (mm) |
| Width | 7.1 (mm) |
| Length | 10.2 (mm) |
| Package Type | PDIP |
| Minimum Operating Temperature | -40 °C |
| Ic Type | CAN Transceiver IC |
| Power Down Mode | Standby |
| Standard Supported | IEC 61000-4-2 |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 8 |
| Dimensions | 10.2 x 7.1 x 5 (mm) |
