PD-40S
SnapVerified

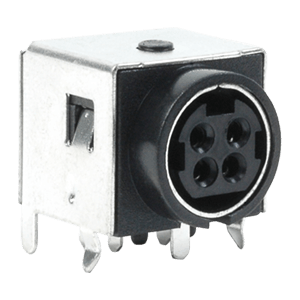

4 Position, 7.5 A, Horizontal, Through Hole, Shielded, Power DIN Connector
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PD-40S by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PD-40S
| Part Name | PD-40S |
| Manufacturer | Same Sky |
| Mounting Style | Through Hole |
| Shielding | Yes |
| Orientation | Horizontal |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/pd-40s |
| Width (in) | 0.63 |
| Length (in) | 0.69 |
| Number of Conductors | 4 |
| Connector Type | Jack |
| Length (mm) | 17.4 |
| Width (mm) | 16 |
| Voltage Rating (Vdc) (V) | 20 |
| Dimensions LxWxH (mm) | 17.4 x 16 x 14.4 |
| Internal Switch(es) | 0 |
| Height (in) | 0.57 |
| Height (mm) | 14.4 |
| Current Rating (A) | 7.5 |
| Dimensions LxWxH (in) | 0.69 x 0.63 x 0.57 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
