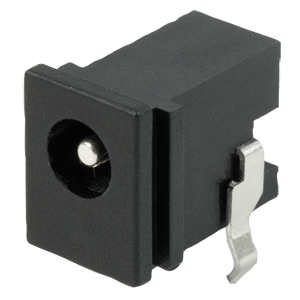

PJ-073
1.65 x 4.4 mm, 2.5 A, Horizontal, Through Hole, Kinked Pins, Dc Power Jack Connector
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PJ-073 by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

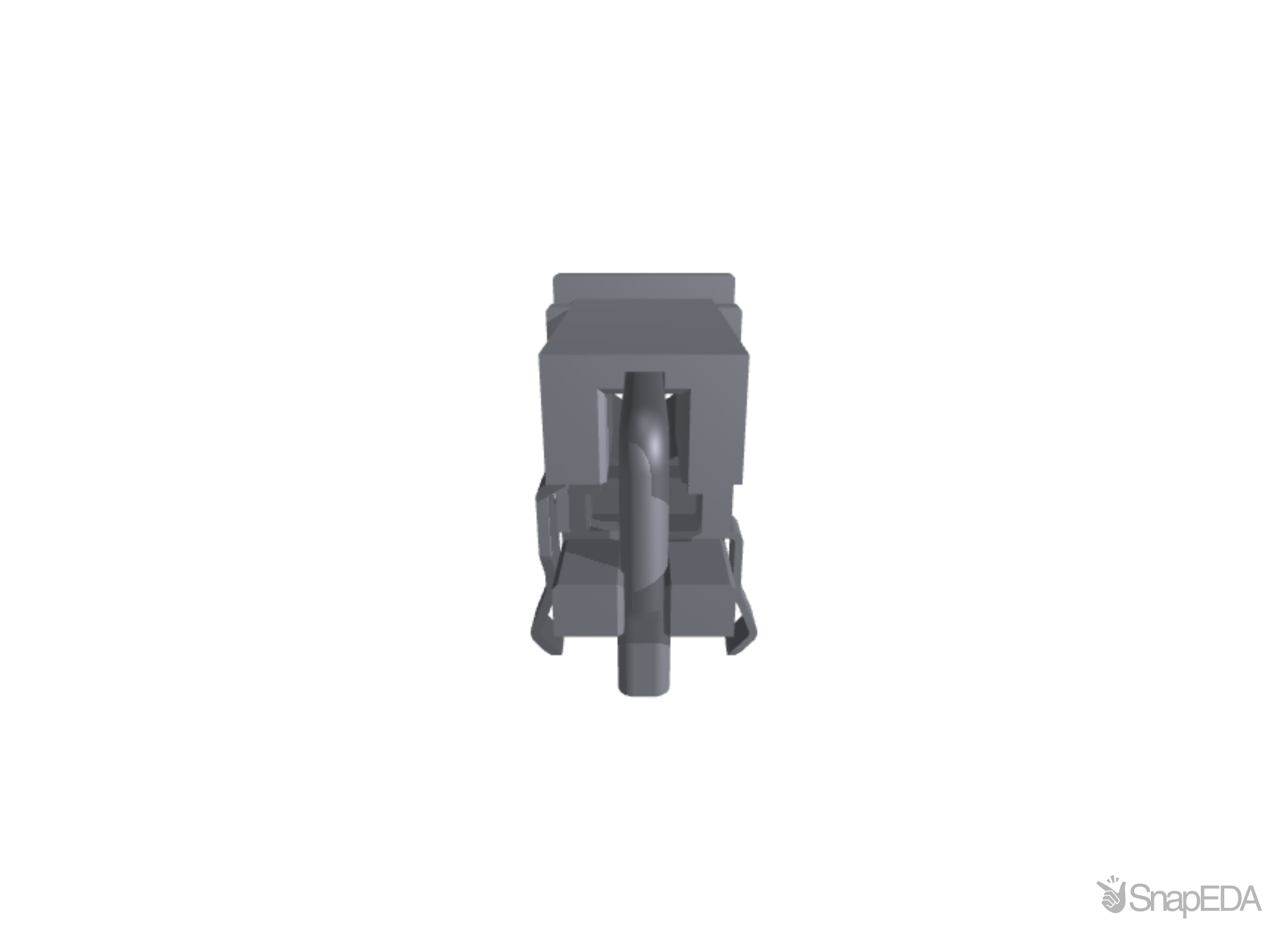

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PJ-073
| Part Name | PJ-073 |
| Manufacturer | Same Sky |
| Mounting Style | Through Hole |
| Shielding | No |
| Orientation | Horizontal |
| Outer Diameter (mm) | 4.4 |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/pj-073 |
| Internal Switch(es) | 1 |
| Number of Conductors | 2 |
| Connector Type | Jack |
| Length (mm) | 13 |
| Width (mm) | 8 |
| Voltage Rating (Vdc) (V) | 24 |
| Insertion Depth/Length (mm) | 8.5 |
| Dimensions LxWxH (mm) | 13 x 8 x 10.5 |
| Inner Diameter (mm) | 1.65 |
| Dimensions LxWxH (in) | 0.51 x 0.31 x 0.41 |
| Current Rating (A) | 2.5 |
| Height (mm) | 10.5 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the PJ-073 by Same Sky from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
28,213
|
|
Visit Site |
No issues have been reported for the PJ-073
If you experienced any issues with the symbol or footprint, please report it.
