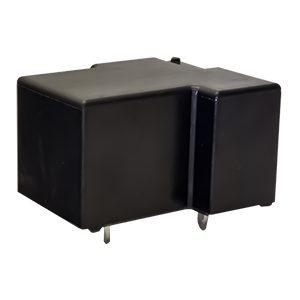

PR26-5V-S-900-1C-E
31.8 x 26.9 x 19.1 mm, 5 V, 40 A, SPDT (1 Form C), Epoxy Sealed, Power Relay
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PR26-5V-S-900-1C-E by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

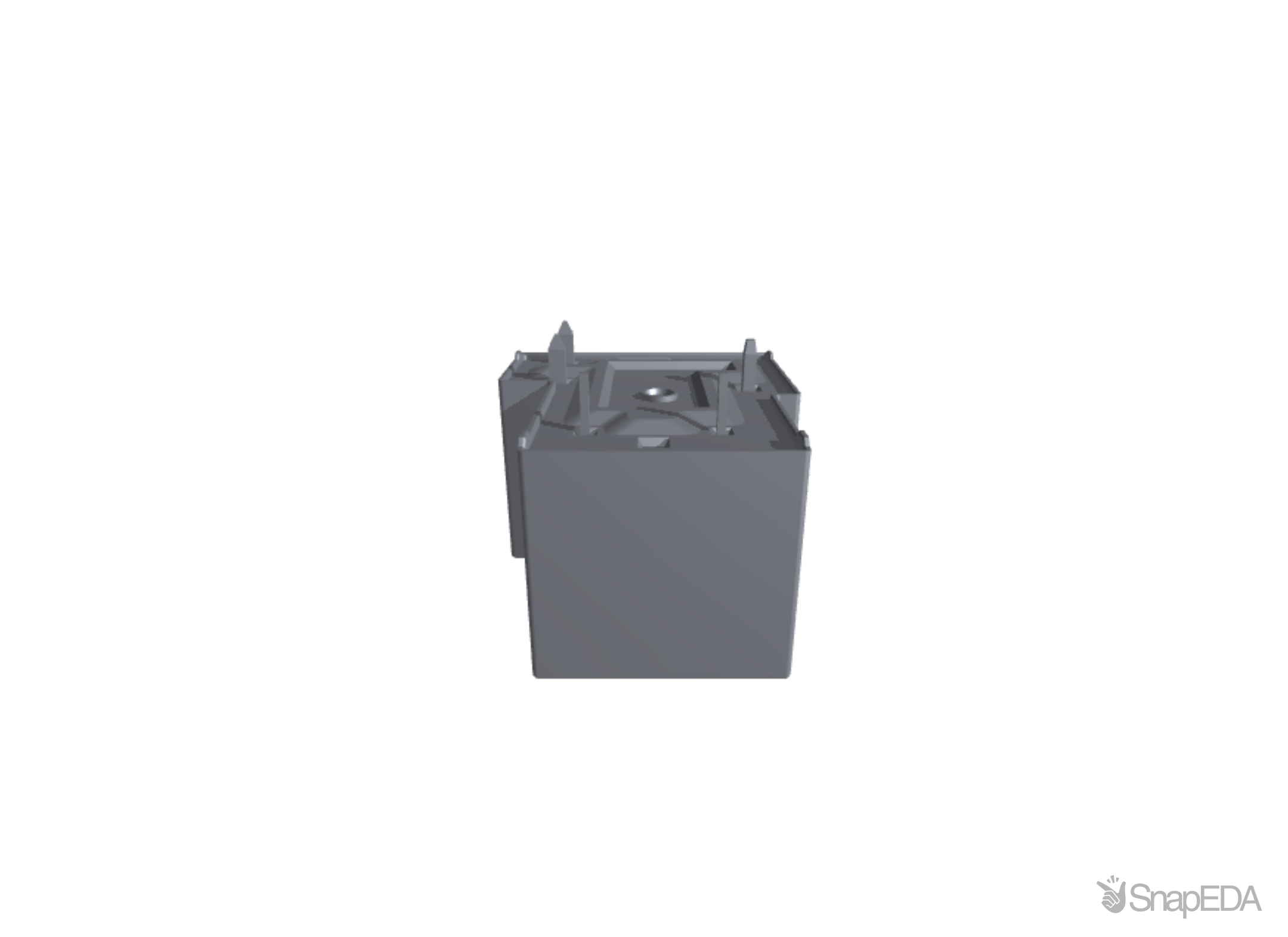

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PR26-5V-S-900-1C-E
| Part Name | PR26-5V-S-900-1C-E |
| Manufacturer | Same Sky |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/pr26-5v-s-900-1c-e |
| Relay Type | Power |
| Operating Temp MIN (°C) | -55 |
| Width (mm) | 26.9 |
| Dimensions LxWxH (mm) | 31.8 x 26.9 x 19.1 |
| Operating Temp MAX (°C) | 85 |
| Coil Insulation Class | B |
| Seal Rating | Fully |
| Max Switching Voltage (VDC) (V) | 30 |
| Contact Rating | 30 A @ 125 VAC/30 VDC |
| Nominal Coil Power (mW) | 900 |
| Contact Form | SPDT (1 Form C) |
| Length (mm) | 31.8 |
| Termination | Pc Pins |
| Max Switching Voltage (VAC) (V) | 300 |
| Max Switching Current (A) | 40 |
| Height (mm) | 19.1 |
| Coil Voltage (V) | 5 |
| Mounting Style | Through Hole |
| Contact Resistance (mΩ) | 50 |
| Contact Material | AgSnO² (Silver Tin Oxide) |
| Dimensions LxWxH (in) | 1.251 x 4.99 x 0.751 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
