PR30-9V-450-1A-E

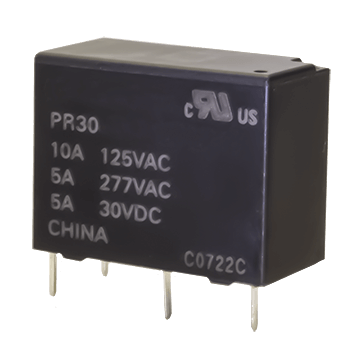

20.5 x 10.2 x 15.3 mm, 9 V, 10 A, SPST (1 Form A), Epoxy Sealed, Power Relay
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PR30-9V-450-1A-E by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PR30-9V-450-1A-E
| Part Name | PR30-9V-450-1A-E |
| Manufacturer | Same Sky |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/pr30-9v-450-1a-e |
| Relay Type | Power |
| Operating Temp MIN (°C) | -40 |
| Width (mm) | 10.2 |
| Dimensions LxWxH (mm) | 20.5 x 10.2 x 15.3 |
| Operating Temp MAX (°C) | 90 |
| Coil Insulation Class | B |
| Seal Rating | Fully |
| Max Switching Voltage (VDC) (V) | 30 |
| Contact Rating | 5 A @ 250 VAC/30 VDC |
| Nominal Coil Power (mW) | 450 |
| Contact Form | SPST (1 Form A) |
| Length (mm) | 20.5 |
| Termination | Pc Pins |
| Max Switching Voltage (VAC) (V) | 250 |
| Max Switching Current (A) | 10 |
| Height (mm) | 15.3 |
| Coil Voltage (V) | 9 |
| Series | PR30 |
| Mounting Style | Through Hole |
| Contact Resistance (mΩ) | 100 |
| Contact Material | AgSnO2 (Silver Tin Oxide) |
| Dimensions LxWxH (in) | 0.807 x 0.401 x 0.602 |
