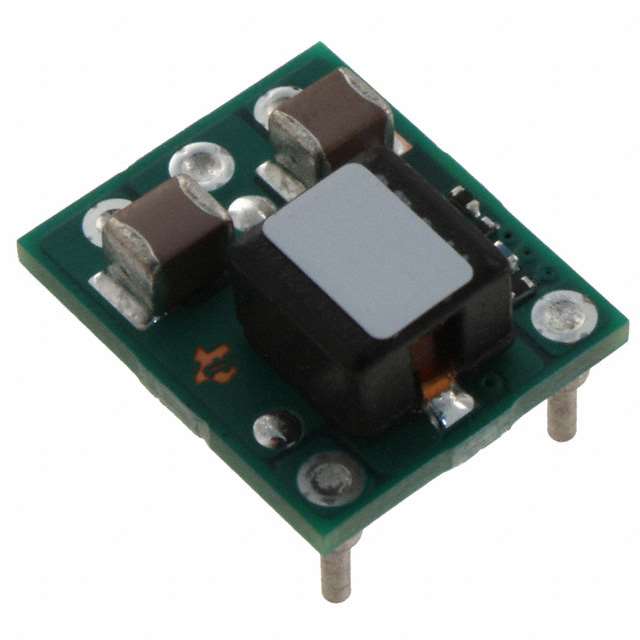

PTH08080WAD
2.25 A, 4.5-V to 18-V Input Wide Adjust Miniature Power Module
Availability: In Stock
Package Type: THROUGH-HOLE MODULE-5
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PTH08080WAD by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

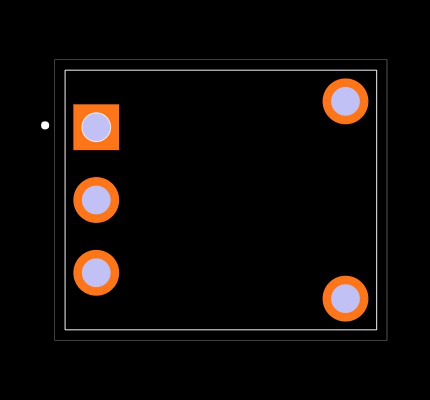

- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

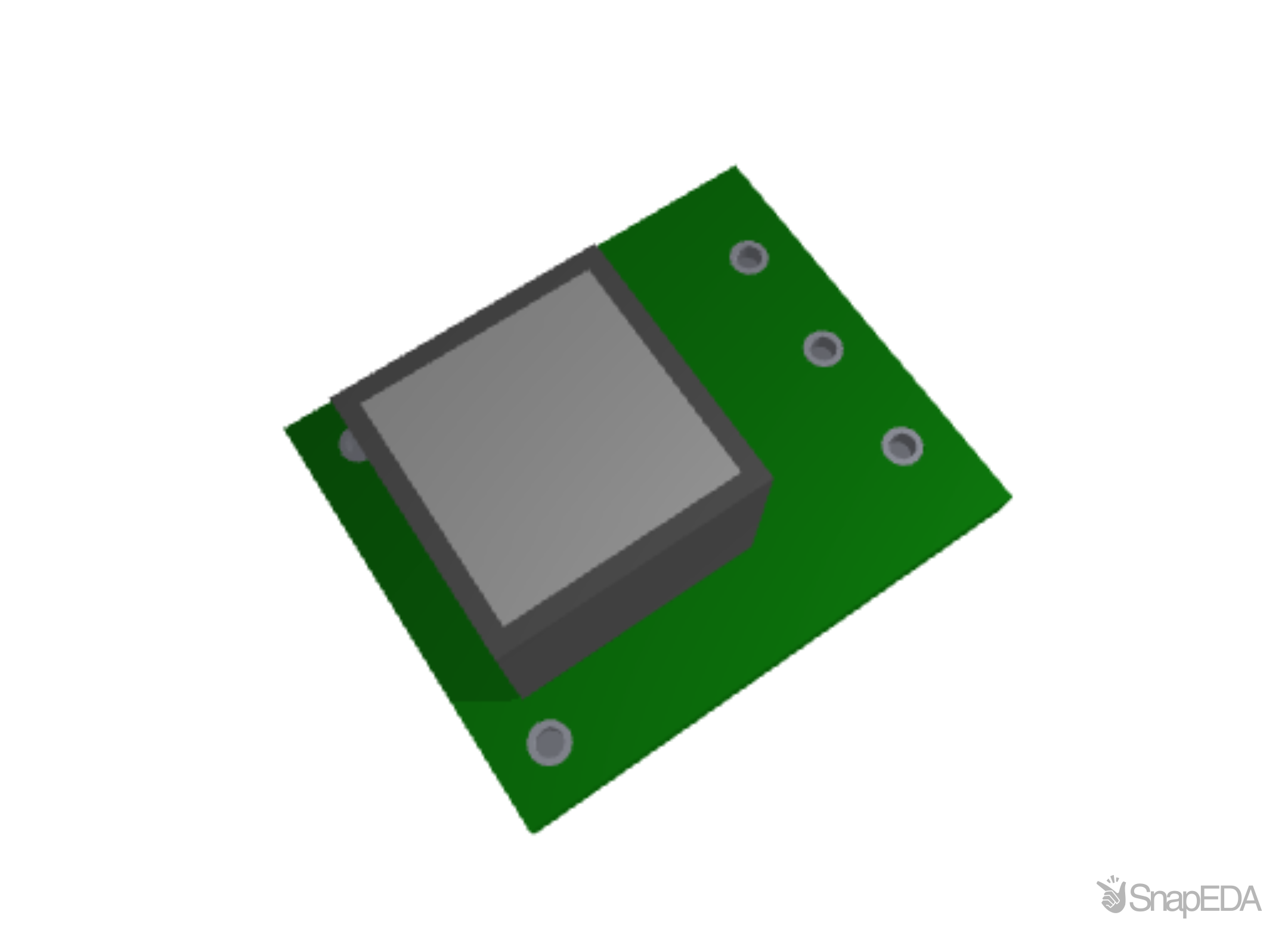

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PTH08080WAD
| Part Name | PTH08080WAD |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Dimensions | 15.24 x 12.7 x 7.93 (mm) |
| Mounting Type | Through Hole |
| Height | 7.93 (mm) |
| Width | 12.7 (mm) |
| Length | 15.24 (mm) |
| Package Type | DIP Module |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 5 |
| Maximum Input Voltage (V) | 18 V |
| Minimum Input Voltage (V) | 4.5 V |
