PTN24A-A5025DB
24 mm, Horizontal, Linear, 50 KO, Through Hole, D-Cut Shaft Rotary Potentiometer
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PTN24A-A5025DB by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

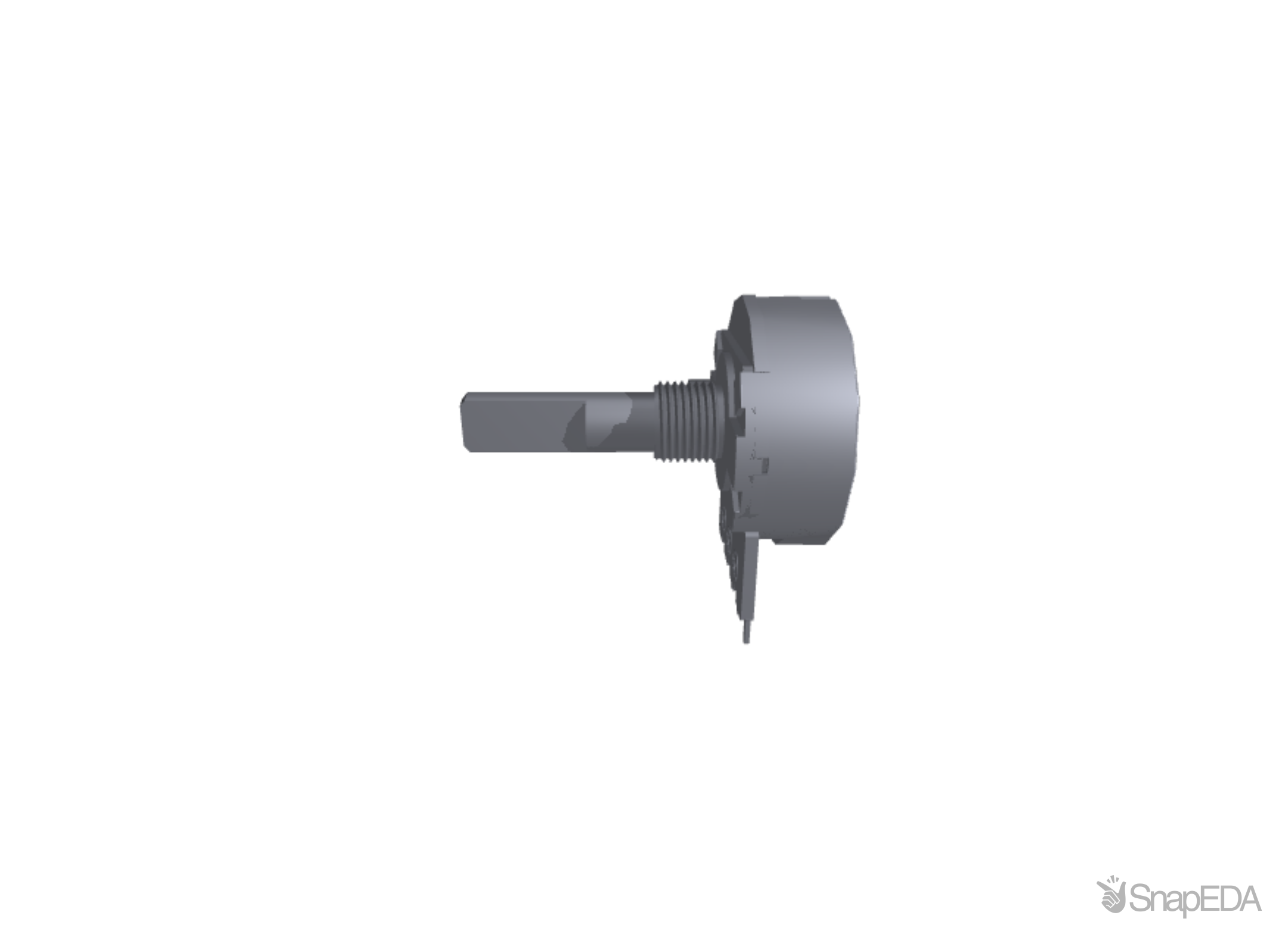

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PTN24A-A5025DB
| Part Name | PTN24A-A5025DB |
| Manufacturer | Same Sky |
| Taper | Linear |
| Rotor | Shafted |
| Size (mm) | 24 |
| Bushing | No Bushing |
| Mounting Type | Through Hole |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/ptn24a-a5025db |
| Resistance (kΩ) | 50 |
| Series | PTN24A |
| Power (W) | 0.5 |
| Potentiometer Type | Rotary |
| Operating Temp MIN (°C) | -10 |
| Number of Turns | 1 |
| Number of Gangs | 1 |
| Detent | No Detent |
| Resistance Tolerance (%) | 20 |
| Shaft Length (mm) | 25 |
| Orientation | Horizontal |
| Shaft Style | D-cut |
| Termination | Down Facing PC Pins |
| Rotation (°) | 300 |
| Operating Temp MAX (°C) | 75 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
